Relationship of PPARG overexpression with prognostic parameters in papillary thyroid carcinoma
Abstract
Objectives. PAX8/PPARG chromosomal rearrangement is frequently seen in thyroid cancer, and PPARG overexpression has been shown in the follicular variant of papillary thyroid carcinoma, but not in papillary thyroid carcinoma other than the follicular variant. The main aim of this study was to investigate the frequency of PPARG overexpression among papillary thyroid carcinoma and if there were any variants of papillary thyroid carcinoma with PPARG overexpression other than the follicular variant.
Methods. Immunohistochemical analysis of PPARG overexpression was performed using a PPARG monoclonal antibody in a series of 111 paraffin-embedded blocks of thyroid tumours. Of the patients in our study, 100 were diagnosed with papillary thyroid carcinoma, 9 with follicular adenoma and 2 with follicular carcinoma.
Results. PPARG staining was detected in 19 of the 111 cases. Sixteen patients with PPARG overexpression had papillary thyroid carcinoma and 3 had follicular adenoma.
Conclusions. PPARG overexpression was detected mainly in follicular-variant papillary thyroid carcinoma. Vascular invasion, lymphatic invasion, thyroid capsule invasion and lymph node positivity were lower in patients with PPARG overexpression.
Introduction
The majority of thyroid cancers are well-differentiated tumours that develop from thyroid follicular cells 1. These tumours are histologically classified as papillary thyroid carcinoma (PTC), follicular thyroid carcinoma (FTC) and Hurthle cell carcinoma 2. Of all thyroid cancers, 79% are PTC, 13% FTC and 3% Hurthle cell carcinoma 1. The prognosis is excellent in most patients with well-differentiated thyroid carcinomas who receive proper diagnosis and treatment. The 5-year relative survival in PTC is higher than 99% in women at age 15-55 years and higher than 96% in men at age 15-55 years 3. Some subtypes of well-differentiated thyroid cancers are known to be more aggressive, and clinical and pathological prognostic factors are helpful in determining which patients will develop aggressive or recurrent disease 4.
The PAX8/PPARG oncogene occurs as a result of stable translocation between PAX8, a transcription factor required for thyroid differentiation, and peroxisome proliferator receptor gamma (PPARG), a member of the steroid/thyroid nuclear receptor family (t [2; 3] [q13; p25]) 5. The existence of this translocation was detected only in FTC and follicular adenoma (FA) in one study 6, whereas in other studies the translocation was also detected in the follicular variant of PTC (FVPTC) 5,7. In the study by Nikiforova et al., it was observed that FTCs with PAX8/PPARG translocation were associated with more aggressive pathological prognostic parameters 6. The translocation of PPARG has been shown with PCR-based methods with better clarity, although the technique is too expensive to apply in all laboratories and settings. Immunohistochemistry (IHC) is an easy and inexpensive method to reveal protein expression in tissues and cells.
In this study, we investigated the presence of PPARG overexpression in PTC, FTC and FA with IHC. We also evaluated the histologic subtypes of tumours with PPARG overexpression and the relationship with prognostic parameters. The present study was performed to investigate the frequency of PPARG overexpression among PTC and if there were any variants of PTC with PPARG overexpression other than the follicular variant.
Materials and methods
Patient selection
Pathology specimens were examined from 124 patients who had thyroid surgery during 2012-2017 at a single tertiary referral centre with a diagnoses of PTC, FTC, or FA. Thirteen patients were excluded because the tumour focus was too small for IHC analysis, and thus a total of 111 patients were included. Of these, PTC was found in 100 patients, FA in 9 patients and FTC in 2 patients. Pathology reports and haematoxylin and eosin (H&E) slides of all patients were obtained from the archives of the Department of Pathology. The preoperative examination, intraoperative surgical findings and postoperative follow-up findings of the patients were obtained by accessing medical records.
Pathological evaluation and immunohistochemistry
Haematoxylin-eosin stained slides of 111 patients with PTC, FTC, or FA were re-examined by a pathologist experienced on thyroid (P.B.), who was blinded to the patient’s clinical information and pathology results. In addition to the thyroid, slides of metastatic foci (neck metastases) were also examined. Tumour foci that were suitable for IHC were marked and highlighted. Two distinct tumour foci were marked for each patient on at least 2 separate slides. The paraffin blocks of the selected slides were pulled from the archives of pathology.
All IHC staining processes, including deparaffinisation and antigen retrieval, were performed on a fully automated staining device (Ventana BenchMark Ultra, Ventana Medical Systems, Tucson, AZ, USA). Cross-sections were incubated for 30 minutes at 1/800 dilution with PPARG rabbit monoclonal antibody (Cell Signaling, Danvers, MA, USA). Nuclear staining in omental adipose tissue of 3 patients without thyroid carcinoma was used as the external control as defined in the user manual by the manufacturer. Similarly, nuclear staining of perithyroidal fat cells was observed in some of the thyroid specimens and used as an internal control.
PPARG monoclonal antibody staining was scored as weak (1+), moderate (2+), or strong (3+) and as focal (less than half of tumour cells were stained) or diffuse (more than half of tumour cells were stained) (Tab. I) 6.
Statistical analysis
IBM SPSS version 15 was used to perform the analysis. When descriptive analysis was presented, mean, standard deviation, median and 25-75 percentile values were used. The normal distribution of variables was examined by histogram graphs and the Kolmogorov-Smirnov test. When normally distributed (parametrical) variables were compared between groups, the one-way analysis of variance (ANOVA) test was used. Post hoc analysis was done according to PPARG staining of tumour cells between the PTC classical and follicular variants. Chi-square and Fisher’s exact tests were used to compare categorical data. For statistical significance, p < 0.05 was accepted.
Results
The study included 111 patients, of whom 33 were men (29.7%) and 78 women (70.3%). The mean age of patients was 42.0 ± 15.3 years. Nineteen of the 111 cases were stained with PPARG monoclonal antibody (Tab. II). Among these 19 cases, nuclear staining was found in only one case with PTC classical variant, and in all other 18 cases there was cytoplasmic staining of tumour cells (Figs. 1-3).
The pathological prognostic parameters of patients were examined according to PPARG monoclonal antibody staining. According to a post-hoc analysis, PPARG staining was higher in FVPTC than in the classical variant. Vascular invasion (p = 0.039), lymphatic invasion (p = 0.019) and thyroid capsule invasion (p = 0.002) were found to be lower in patients with PPARG staining (Tab. III).
There was no lymph node metastasis in any tumour that stained with PPARG monoclonal antibody in our case series (p = 0.012). Lymph node metastasis was detected in 22 of 111 patients. Nuclear or cytoplasmic PPARG immunoreactivity was not observed in any of these 22 cases. Therefore, we could not examine whether there is a relationship between PPARG and lymph node positive or negative cases in terms of recurrence. There was no relationship between tumour size and positive staining of tumours (p = 0.654) (Tab. IV).
There was also no relationship between PPARG positive tumours and stage, postoperative need of radioactive iodine (RAI), or recurrence (p > 0.05). There was no statistically significant difference between PPARG staining and multifocality or multicentricity (p > 0.05).
The ultrasonographic characteristics of tumour nodules were investigated according to the American Thyroid Association (ATA) Guideline for thyroid nodule sonographic patterns and estimated risk of malignancy. PPARG-positive tumours were found to be more related with low-to-moderate risk nodules (p = 0.009) (Fig. 4).
Discussion
PPARG staining was detected in 19 of 111 cases studied herein. Sixteen of the patients with PPARG overexpression had PTC (9 follicular variant, 3 oncocytic variant, 2 classical variant, 1 solid variant and 1 Warthin-like variant), and 3 patients had FA.
Even though nuclear staining of PPARG has been found to be meaningful in recent studies 6,8, 18 of our cases showed cytoplasmic staining as well. The antibody used in the immunohistochemistry was a monoclonal antibody which means it has less background staining and higher specificity for the target compared to polyclonal antibodies. Omental tissues of non-PTC cases were used as external controls, and perithyroidal fat tissues were used as internal controls to compare and adjust the staining (Figs. 1-3). Despite these calibrations and adjustments, the difference in the brands and clones of the antibodies might have affected these results. This might also explain the confusing results in the current literature. One might consider that mitochondrial rich cells can show background staining as their organelle burden is too high, but only 3 of the positive cases were oncocytic PTCs, so this cannot explain the cytoplasmic staining (Figs. 1-3). According to the Human Protein Atlas 9 results, PPARG immunohistochemical staining is seen in the nucleus as well as in cytoplasmic/membranous parts of thyroid cancer cells. As a result, cytoplasmic staining in our cases might be interpreted as a verification or new contribution to the literature.
As far as we can determine from the literature, PPARG overexpression has been detected in FTC, FVPTC and FA, but there is no study showing PPARG overexpression in PTC other than in the follicular variant. Thus, in our study we demonstrated PPARG overexpression in both FVPTC and other variants of PTC with IHC. In a study by Nikiforov et al., PPARG overexpression was found in FTC and FA, but not detected in PTC 6. In that study, the authors pointed out that PAX8/PPARG translocation may be specific to follicular lesions of the thyroid gland and may be used as a molecular marker. In addition, it was reported that FTC cases with this translocation showed a more aggressive growth pattern and more vascular invasion 6. In a study by Wreesmann et al., PPARG overexpression was detected in FVPTC as well as in FTC and FA 10. In that study, an immunohistochemical analysis of PPARG monoclonal antibody was performed, and PPARG overexpression was detected in 2 of 3 patients with FTC, in 8 of 11 patients with FA and in 3 of 17 cases with FVPTC, but not detected in any of the 25 cases with the classical variant of PTC. In our study, PPARG overexpression was detected in some cases with FA, as in the literature, but, in contrast, there was no overexpression in the 2 FTC cases in our database. PPARG overexpression in FVPTC has been shown in some studies but not in others, while it was observed in 9 of 28 patients with FVPTC in our study. In contrast to what is known in the literature, PPARG overexpression was also found in PTC variants other than the follicular variant in our series.
Although the immunohistochemical detection of PPARG overexpression in tumour cells may be a sign of PAX8/PPARG translocation, a definitive diagnosis is established by RT-PCR or FISH. In addition, Nikiforova et al. reported that they detected PAX8/PPARG rearrangement in all tumours that stained diffuse and strong with PPARG monoclonal antibody, but not in patients with focal or weak staining 6. In the context of that study, we detected diffuse and strong cytoplasmic staining with PPARG monoclonal antibody in three cases, which may be a sign with the translocation being found in 1 patient with FA, 1 patient with the PTC oncocytic variant, and 1 patient with the PTC solid variant. In contrast, Lacroix et al. found that in the 17 FTCs in which no PAX8/PPARG translocation was found, nuclear staining with PPARG monoclonal antibody was diffusely positive and intense in five samples 11.
Vascular invasion (p = 0.039), lymphatic invasion (p = 0.019), thyroid capsule invasion (p = 0.002) and lymph node positivity (p = 0.012) were found to be lower in PTC patients with PPARG overexpression than in PTC patients without overexpression. This suggests that PTCs with PPARG overexpression may be associated with less aggressive behaviour in terms of the pathological prognostic parameters. In the study by Nikiforova et al., it was found that thyroid capsule invasion, extrathyroidal soft tissue invasion and vascular invasion were more common in FTC cases with PPARG overexpression 6. However, in our study we had only two cases of FTC and there was no staining with these two cases. Galusca et al. reported that PTCs with lymph node metastasis showed a significantly higher percentage of PPARG-positive cases than those without, and they highlighted that PPARG expression might be related to tumour progression 8. Contrary to the two aforementioned studies, Lacroix et al. found no relationship between PAX8-PPARG rearrangement and the clinical status of patients such as age, TNM stage and radioactive iodine uptake 11.
In 12 of the 111 patients in our study, variable degrees of immunoreactivity were observed with PPARG in the non-tumoural thyroid parenchyma. In 2 of those cases, immunoreactivity together with non-tumour thyroid parenchyma was observed in tumour cells, while in other cases immunoreactivity was observed only in non-tumour thyroid tissue. Among the cases with varying degrees of immunoreactivity in the non-tumoural areas, 6 had lymphocytic thyroiditis, 1 had nodular hyperplasia, 1 had Hashimoto’s thyroiditis and 1 had Graves’ disease, while 3 had staining in normal thyroid tissue. Similarly, in the study by Nikiforova et al. moderate or strong immunoreactivity with PPARG was observed in some cases with Hashimoto’s thyroiditis. This condition was attributed to the probability of wild-type PPARG expression in these areas 6.
Well-differentiated thyroid cancer is usually treated surgically, with radioactive iodine therapy as needed, as well as thyroid stimulating hormone suppression 12-14. In case of recurrence, repeated radioiodine administration may be beneficial when the tumour takes radioiodine 15,16. In cases refractory to radioiodine therapy, palliation of local symptoms can be achieved by external beam radiotherapy with or without a multikinase inhibitor 17-20. Because thyroid cancer is a chemotherapy refractory disease 21, new agents or new treatment modalities are necessary to treat patients with radioiodine refractory metastatic disease in thyroid carcinoma. Pioglitazone is an antidiabetic agent used to treat type 2 diabetes through PPARG 22. A study investigating the efficacy of pioglitazone in thyroid carcinoma in a transgenic mouse model with PAX8/PPARG translocation was conducted by Dobson et al. 23. In that study, it was reported that pioglitazone transdifferentiated thyroid tumour cells containing PAX8/PPARG fusion protein (PPFP) to adipocyte-like cells, decreased tumour size and prevented metastatic disease. In light of the possible effect of pioglitazone in animal models, it was thought that pioglitazone might have an effect on human thyroid tumour cells harboring PPFP. In a phase 2 multicentre study investigating the efficacy of pioglitazone in patients with progressive thyroid cancer refractory to RAI treatment, PPFP was detected in only 1 patient 24. That patient had a 6 cm painful metastatic focus at the right acetabulum, had thyroglobulin levels above the thousands and had to use a wheelchair. Despite receiving 30 Gy external beam radiotherapy in 10 fractions, the patient showed no improvement 17. In that study, pioglitazone decreased the size of the metastatic lesion, decreased the level of thyroglobulin in the patient with PPARG overexpression and decreased pain related to metastatic disease.
Well-differentiated thyroid cancers respond well to surgical treatment. Radioactive iodine treatment is very effective in treating both local and distant metastases after surgical treatment and in relapses. Although well-differentiated thyroid cancers respond superbly to surgical treatment and radioactive iodine therapy, new treatment modalities are needed in patients with progressive disease refractory to radioactive iodine. The response to pioglitazone of the patient with a radioactive iodine refractory progressive thyroid carcinoma harbouring PPFP 24 shows the importance of molecular pathways in thyroid cancers and suggests possible new treatment modalities in selected cases.
Conclusions
In our study, PPARG overexpression was detected with IHC in FA and in some variants of PTC, including the follicular, classical, solid, oncocytic and Warthin-like variants. PPARG overexpression in PTC was found to be associated with less lymphovascular invasion, less thyroid capsule invasion and less lymph node metastasis. PTC cases with cytoplasmic or nuclear immunohistochemical overexpression of PPARG monoclonal antibody might be good candidates to further analyse PAX8/PPARG translocations with PCR-based methods, if necessary.
Conflict of interest statement
The authors declare no conflict of interest.
Funding
This study was funded by the project committee of Marmara University Scientific Research Project Unit. Project number is SAG-C-TUP-120917.
Authors’ contributions
All authors contributed in design, data collection and processing, analysis, literature review, writing and critical review.
Ethical consideration
The study was approved by Marmara University Medical Faculty Ethics Committee for Clinical Research (Approval number 09.2017.489 on 14/07/2017).
The research was conducted ethically, with all study procedures being performed in accordance with the requirements of the World Medical Association’s Declaration of Helsinki.
Figures and tables
Figure 1.Nuclear staining of omental adipose tissue cells with PPARG monoclonal antibody (external control), X40.
Figure 2.Diffuse 3+ cytoplasmic staining of tumour cells with PPARG monoclonal antibody, X20.
Figure 3.Focal nuclear staining of tumour cells with PPARG monoclonal antibody, X40.

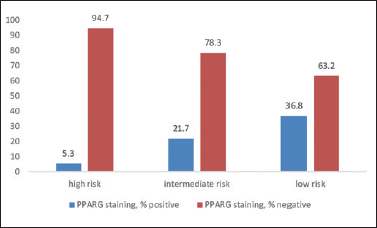

Figure 4.Relationship between PPARG staining and ATA nodule sonographic patterns and risk of malignancy.
| Staining and score of stained tumour cells | |
| Strong staining | 3+ |
| Moderate staining | 2+ |
| Weak staining | 1+ |
| Percentage of tumour cells stained | |
| Diffuse staining | > 50% of tumour cells positive |
| Focal staining | < 50% of tumour cells positive |
| n | % | ||
|---|---|---|---|
| PPARG staining | Positive | 19 | (17.1) |
| Negative | 92 | (82.9) | |
| Degree of PPARG staining | 1 + diffuse staining | 5 | (4.5) |
| 2 + diffuse staining | 10 | (9.0) | |
| 3 + diffuse staining | 3 | (2.7) | |
| 3 + focal staining | 1 | (0.9) | |
| No staining | 92 | (82.9) | |
| PPARG staining | p | |||||
|---|---|---|---|---|---|---|
| Positive | Negative | |||||
| n | % | n | % | |||
| Histopathology | Classical variant of PTC | 2 | 10.5 | 48 | 52.2 | 0.004b |
| FVPTC | 9 | 47.4 | 19 | 20.7 | ||
| Other variants of PTC | 5 | 26.3 | 17 | 18.5 | ||
| FA | 3 | 15.8 | 6 | 6.5 | ||
| FTC | 0 | 0.0 | 2 | 2.2 | ||
| Vascular invasion | Positive | 1 | 5.3 | 26 | 28.3 | 0.039b |
| Negative | 18 | 94.7 | 66 | 71.7 | ||
| Lymphatic invasion | Positive | 1 | 5.3 | 29 | 31.5 | 0.019a |
| Negative | 18 | 94.7 | 63 | 68.5 | ||
| Perineural invasion | Positive | 0 | 0.0 | 13 | 14.1 | 0.120b |
| Negative | 19 | 100.0 | 79 | 85.9 | ||
| Thyroid capsule invasion | Positive | 3 | 15.8 | 51 | 55.4 | 0.002a |
| Negative | 16 | 84.2 | 41 | 44.6 | ||
| Extrathyroidal soft tissue invasion | Positive | 3 | 15.8 | 26 | 28.3 | 0.391b |
| Negative | 16 | 84.2 | 66 | 71.7 | ||
| PPARG staining | p | |||||
|---|---|---|---|---|---|---|
| Positive | Negative | |||||
| n | % | n | % | |||
| T (tumour size) | T1a | 4 | 21.1 | 18 | 19.6 | 0.654a |
| T1b | 9 | 47.4 | 35 | 38.0 | ||
| T2 | 2 | 10.5 | 22 | 23.9 | ||
| T3a | 1 | 5.3 | 8 | 8.7 | ||
| T3b | 0 | 0.0 | 2 | 2.2 | ||
| T4a | 0 | 0.0 | 1 | 1.1 | ||
| FA | 3 | 15.8 | 6 | 6.5 | ||
| N (lymph node) | Nx | 16 | 84.2 | 64 | 69.5 | 0.166a |
| N0a | 3 | 15.8 | 6 | 6.5 | ||
| N0b | 0 | 0.0 | 0 | 0.0 | ||
| N1a | 0 | 0.0 | 8 | 8.7 | ||
| N1b | 0 | 0.0 | 14 | 15.3 | ||
| M (metastasis) | M0 | 19 | 100.0 | 88 | 95.7 | > 0.999a |
| M1 | 0 | 0.0 | 4 | 4.3 | ||
| Lymph node positivity | Negative | 19 | 100.0 | 70 | 76.1 | 0.012a |
| Positive | 0 | 0.0 | 22 | 23.9 | ||
References
- Howlader N, Noone AM, Krapcho M. SEER Cancer Statistics Review, 1975-2013. National Cancer Institute: Bethesda; 2016. Publisher Full Text
- Sipos J, Mazzaferri E. Thyroid cancer epidemiology and prognostic variables. Clin Oncol (R Coll Radiol). 2010; 22:395-404. DOI
- Dal Maso L, Tavilla A, Pacini F. Survival of 86,690 patients with thyroid cancer: a population-based study in 29 European countries from EUROCARE-5. Eur J Cancer. 2017; 77:140-152. DOI
- Ito Y, Miyauchi A. Prognostic factors and therapeutic strategies for differentiated carcinomas of the thyroid. Endocr J. 2009; 56:177-192. DOI
- Raman P, Koenig RJ. PAX-8-PPAR-gamma fusion protein in thyroid carcinoma. Nat Rev Endocrinol. 2014; 10:616-623. DOI
- Nikiforova MN, Biddinger PW, Caudill CM. PAX8-PPARγ rearrangement in thyroid tumors: RT-PCR and immunohistochemical analyses. Am J Surg Path. 2002; 26:1016-1023. DOI
- Castro P, Roque L, Magalhães J. A subset of the follicular variant of papillary thyroid carcinoma harbors the PAX8-PPARγ translocation. Int J Surg Path. 2005; 13:235-238. DOI
- Galusca B, Dumollard JM, Chambonniere ML. Peroxisome proliferator activated receptor gamma immunohistochemical expression in human papillary thyroid carcinoma tissues. Possible relationship to lymph node metastasis. Anticancer Res. 2004; 24:1993-1997.
- Publisher Full Text
- Wreesmann VB, Ghossein RA, Hezel M. Follicular variant of papillary thyroid carcinoma: genome-wide appraisal of a controversial entity. Genes Chromosomes Cancer. 2004; 40:355-364. DOI
- Lacroix L, Mian C, Barrier T. PAX8 and peroxisome proliferator-activated receptor gamma 1 gene expression status in benign and malignant thyroid tissues. Eur J Endocrinol. 2004; 151:367-374. DOI
- Haugen BR, Alexander EK, Bible KC. 2015 American Thyroid Association management guideliness for adult patients with thyroid nodules and differentiated thyroid cancer: the American Thyroid Association Guidelines Task Force on thyroid nodules and differentiated thyroid cancer. Thyroid. 2016; 26:1-133. DOI
- Haymart MR, Esfandiari NH, Stang MT. Controversies in the management of low-risk differentiated thyroid cancer. Endocr Rev. 2017; 38:351-378. DOI
- Momesso DP, Vaisman F, Yang SP. Dynamic risk stratification in patients with differentiated thyroid cancer treated without radioactive iodine. J Clin Endocrinol Metab. 2016; 101:2692-2700. DOI
- Van Nostrand D. Selected controversies of radioiodine imaging and therapy in differentiated 492 thyroid cancer. Endocrinol Metab Clin North Am. 2017; 46:783-793. DOI
- Sa R, Cheng L, Jin Y. Distinguishing patients with distant metastatic differentiated thyroid cancer who biochemically benefit from next radioiodine treatment. Front Endocrinol (Lausanne). 2020; 11:587315. DOI
- Ancker OV, Krüger M, Wehland M. Multikinase inhibitor treatment in thyroid cancer. Int J Mol Sci. 2019; 10DOI
- Valerio L, Pieruzzi L, Giani C. Targeted therapy in thyroid cancer: state of the art. Clin Oncol (R Coll Radiol). 2017; 29:316-324. DOI
- Farina E, Monari F, Castellucci P. 18F-FDG pet guided external beam radiotherpy in iodine-refractory differentiated thyroid cancer. A pilot study. J Thyroid Res. 2017; 2017:9807543. DOI
- Giovanella L, Scappaticcio L. Radioiodine therapy of advanced differentiated thyroid cancer: clinical considerations and multidisciplinary approach. Q J Nucl Med Mol Imaging. 2019; 63:229-234. DOI
- Siragusa M, Zerilli M, Iovino F. MUC1 oncoprotein promotes refractoriness to chemotherapy in thyroid cancer cells. Cancer Res. 2007; 67:5522-5530. DOI
- Lehmann JM, Moore LB, Smith-Oliver TA. An antidiabetic thiazolidinedione is a high affinity ligand for peroxisome proliferator-activated receptor γ (PPARγ). J Biol Chem. 1995; 270:12953-12956. DOI
- Dobson ME, Diallo-Krou E, Grachtchouk V. Pioglitazone induces a proadipogenic antitumor response in mice with PAX8-PPARγ fusion protein thyroid carcinoma. Endocrinology. 2011; 152:4455-4465. DOI
- Giordano TJ, Haugen BR, Sherman SI. Pioglitazone therapy of PAX8-PPAR γ fusion protein thyroid carcinoma. J Clin Endocrinol Metab. 2018; 103:1277-1281. DOI
