Treatment-emergent central sleep apnoea after surgery for obstructive sleep apnoea| ACTA Otorhinolaryngologica Italica

Abstract

Central sleep apnoea (CSA) is a lack of drive to breathe during sleep, which can occur in physiologic as well as in pathologic conditions. A particular type of CSA, defined treatment-emergent CSA (TECSA), may occur after the treatment of obstructive sleep apnoea syndrome (OSAS), either with CPAP or surgery. TECSA is transitory and seems to be related to the severity of OSAS. We describe a 51-year-old man affected by severe OSAS who developed severe, transient CSA immediately after upper airways surgery. We believe that CSA was triggered by the sudden variation in nocturnal arterial PCO2, which decreased from 52.3 mmHg before surgery to 42.0 mmHg after surgery. It is conceivable that, due to long-lasting severe OSAS, our patient lowered his chemosensitivity to PCO2. Consequently, the resolution of obstructive apnoeas and the restoration of normal nocturnal values of PCO2 may have reduced the nocturnal PCO2 to the point of being inadequate to stimulate ventilation.

Introduction

Central sleep apnoea (CSA) is characterised by a lack of drive to breathe during sleep. CSA can occur in a variety of physiologic and pathologic conditions, which include sleep at high altitude, drug intake, neuromuscular disorders, congestive heart failure, idiopathic CSA; moreover, CSA can be associated with obstructive sleep apnoea syndrome (OSAS) ¹.

The present report concerns the polysomnographic findings in a 51-year-old man affected by severe OSAS, who developed severe, transient CSA immediately after upper airway surgery for OSAS.

Case report

A 49-year-old man referred to our sleep centre for symptoms of OSAS. No remarkable medical history was reported; in particular, neurologic, heart and respiratory diseases were ruled out, and he took no drugs. Body mass index (BMI) was 27.8 kg/m², neck circumference was 42.5 cm, Mallampati class IV. Spirometry and pulmonary function tests were normal. He underwent full-night, laboratory based nocturnal video-polysomnography (PSG). PSG montage included three EEG leads, two EOGs, submental PNG, chest and abdominal respiratory effort, airflow (nasal cannula), EKG, SpO₂, body position, snoring, audio and video recording. PSG showed apnoea-hypopnoea index (AHI) = 40 events/hour, and oxygen desaturation index (ODI) = 41.8 events/hour. The index of central events was 4.6. Treatment with positive airways pressure was started (CPAP = 12 cmH₂0). CPAP was titrated to suppress all sleep-related pathologic respiratory events. The patient came for follow-up evaluation 24 months later, complaining of poor compliance with CPAP and persistence of symptoms, despite the use of a humidifier and the adoption of alternatively a nasal and a facial mask. A trial with a BiPAP was also attempted, without satisfactory results. He underwent a pre-surgical evaluation protocol. BMI and neck circumference were unmodified. Arterial blood gas analysis was performed in the morning, within minutes from awakening, while breathing room air. Gas analysis showed PCO₂ = 52.3 mmHg, PO₂ = 90.2 mmHg, pH = 7.4. Sleep endoscopy showed three sites of obstruction: nasal (hypertrophy of inferior turbinates); retro palatal-oropharyngeal (total antero-posterior collapse); and laryngeal (collapse of the epiglottis on the lumen of larynx). Therefore, he underwent a surgical procedure which included mucotomy with radiofrequency, uvulopalatopharyngoplasty (UPPP) and partial epiglottectomy. No surgical complications occurred. The patient presented no clinically relevant post-operative pain, and no narcotic therapy was administered. PSG performed three days after surgery (to rule out possible residual effect of anaesthetics); PSG showed a clear reduction of the obstructive events, but a striking increase of the central apnoea index (Fig. 1). At this time, the patient reported no symptoms and other subjective complaints. Central apnoeas progressively decreased in follow-up PSGs, whereas the index of obstructive+mixed events remained stable. PSG results, apnoea-hypopnoea and oxygen desaturation indexes and values of arterial blood gas analysis are reported in Table I.

Discussion

A particular type of CSA, defined treatment-emergent central sleep apnoea (TECSA) and previously known as complex sleep apnoea, has been reported during the titration CPAP in patients with OSAS ². In a large retrospective study of patients with OSAS, 6.5% had CPAP emergent complex sleep apnoea; however, it was generally transitory and was eliminated within eight weeks of CPAP therapy ². The occurrence of CSA during CPAP treatment is related to the severity of OSAS ². TECSA has also been occasionally described after the surgical treatment of OSAS, in particular with tracheostomy ³ and maxillomandibular advancement ⁴. Central sleep apnoea has not been reported following palatal or pharyngeal surgery ^5-7.

The pathogenesis of CSA after the resolution of OSAS is unclear. CSA during sleep is due to abnormalities in ventilation control mechanisms, and ventilation during sleep, in particular during NREM sleep, is entirely dependent on the metabolic control systems. This means that the ventilatory drive during NREM sleep is dependent on the fluctuations of the levels of arterial PCO₂.

We believe that, in our patient, transient, self-limiting CSA was triggered by the sudden variation of nocturnal PCO₂ that occurred immediately after surgery in a patient with reduced chemosensitivity due to long-term exposure to nocturnal hypercapnia. In fact, values of arterial PCO₂ on awakening decreased from 52.3 (before surgery) to 42.0 mmHg (after surgery). Severe OSAS may be associated with high levels of nocturnal arterial PCO₂, due to sleep disordered breathing itself, even in the absence of other respiratory impairment ⁸. This, in turn, can result in reduced sensitivity of brainstem chemoreceptors to PCO₂. The resolution of sleep-related obstruction and restoration of normal nocturnal values of PCO₂ might have decreased the response of brainstem chemoceptors to PCO₂ to the point of apnoea ¹. In other words, the levels of arterial PCO₂ became inadequate to stimulate ventilation during sleep.

The loop-gain model provides a good explanation for breathing instability in our patient ⁹. Loop gain is an engineering term used to quantify the gain of a system controlled by feedback loops. Respiration is in fact such a system. According to the model, a strong interaction occurs between airway caliber and ventilatory stability. It can be hypothesised that, before surgery, our patient presented a low critical pressure for upper airways closure and, consequently, obstructive apnoeas occurred. After surgery, which reduced upper airways resistance, our patient presented a high loop gain (due to reduced sensitivity to CO₂) and, consequently, respiratory instability. Some weeks later, after a progressive adaptation to the new levels of nocturnal PCO₂, CSA progressively decreased.

In conclusion, our observation suggests that PSG monitoring may be useful, in the days immediately after surgical intervention, in order to recognise CSA. It seems conceivable that routine assessment of complex sleep apnoea should be performed after surgery at least in patients with preoperative evidence of nocturnal hypercapnia. Moreover, monitoring the levels of arterial PCO₂ may help to predict, and eventually prevent, the occurrence of CSA. In our patient, no symptoms of central apnoeas were reported, the condition was self-limiting and no specific treatment was needed.

Figures and tables

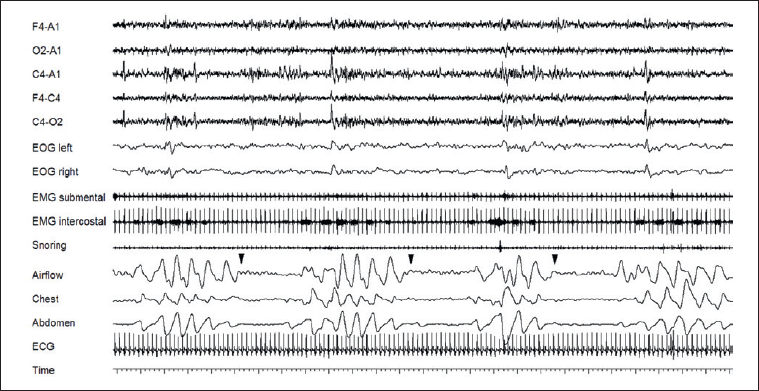

Fig. 1.PSG recording (about 2 minutes) obtained during night #3 postsurgery. Three central apnoeas are shown (arrows).

References

1. White DP. Pathogenesis of obstructive and central sleep apnea. Am J Respir Crit Care Med. 2005; 172:1363-70.
2. Javaheri S, Smith J, Chung E.. The prevalence and natural history of complex sleep apnea. J Clin Sleep Med. 2009; 5:205-11.
3. Guilleminault C, Simmons FB, Motta J. Obstructive sleep apnea syndrome and tracheostomy. Long-term follow-up experience. Arch Intern Med. 1981; 141:985-8.
4. Corcoran S, Mysliwiec V, Niven AS. Development of central sleep apnea after maxillofacial surgery for obstructive sleep apnea. J Clin Sleep Med. 2009; 5:151-3.
5. Vicini C, Meccariello G, Cammaroto G. Barbed reposition pharyngoplasty in multilevel robotic surgery for obstructive sleep apnoea. Acta Otorhinolaryngol Ital. 2017; 37:214-7.
6. Cammaroto G, Montevecchi F, D’Agostino G. Palatal surgery in a transoral robotic setting (TORS): preliminary results of a retrospective comparison between uvulopalatopharyngoplasty (UPPP), expansion sphincter pharyngoplasty (ESP) and barbed repositioning pharyngoplasty (BRP). Acta Otorhinolaryngol Ital. 2017; 37:406-9.
7. Pang KP, Pang EB, Pang KA. Anterior palatoplasty in the treatment of obstructive sleep apnoea - a systemic review. Acta Otorhinolaryngol Ital. 2018; 38:1-6.
8. Chin K, Hirai M, Kuriyama T. Changes in the arterial PCO2 during a single night’s sleep in patients with obstructive sleep apnea. Intern Med. 1997; 36:454-60.
9. Wellman A, Jordan AS, Malhotra A. Ventilatory control and airway anatomy in obstructive sleep apnea. Am J Respir Crit Care Med. 2004; 170:1225-32.
