Overview of different modified full-face snorkelling masks for intraoperative protection
Abstract
Objective. The COVID-19 pandemic has caused significant impact on healthcare systems worldwide. The rate of infected healthcare workers is > 10% in Italy. Within this dramatic scenario, the development of new personal protective equipment (PPE) devices is mandatory. This study focuses on validation of modified full-face snorkel masks (MFFSM) as safe and protective equipment against SARS-CoV-2 infection during diagnostic and therapeutic procedures on the upper aerodigestive tract.
Methods. Five different MFFSM were tested during otolaryngological surgery and in anaesthesia procedures. Data were collected through an online survey to assess the feedback of operators. pO2 and pCO2 monitoring values during procedures were recorded in selected cases. Results. All five MFFSM tested were easy to use and gave all operators a sound “feeling” of protection. All clinicians involved had common agreement regarding safety and the userfriendly format.
Conclusions. In the future, specific development of different type of masks for protection in the operating room, intensive care units and/or office will be possible as a joint venture between clinicians and developers. Goals for clinicians include better definition of needs and priorities, while developers can devote their expertise to produce devices that meet medical requirements.
Introduction
The COVID-19 pandemic has caused significant impact on healthcare systems worldwide and is perhaps the most demanding challenge of the last decades. Infected healthcare workers represent more than 10% of all COVID-19 cases in Italy, thus highlighting the relevant involvement of this professional category 1. Unfortunately, there is limited knowledge about the biological behaviour, transmission and spread of the SARS-CoV-2 virus, and up to now only empirical treatments and preventive methods against infection have been employed 2. Direct contact (direct/indirect touching) and virus-containing aerosolised droplets during cough, sneezing and speaking within few metres are believed to be the main routes of the spread of infection. However, the hypothesis that the virus is diffuse in air, as its predecessor SARS-CoV-1, is well supported 3.
There is evidence that a relevant rate of droplets expired containing virus become much smaller after water evaporation reaching 5 microns of dimension without gravitation effects and are free to travel in the air even at considerable distances; experimental studies show that SARS-CoV-2 remains active in aerosols for at least 3 hours and on non-porous surfaces for up to 72 hours 4-6.
These pathways of viral spread and its high stability in indoor environments can explain the high risk of disease transmission, causing a significant number of nosocomial infections and consequently a high risk of exposure to the virus for healthcare personnel. Several other reasons, such as insufficient training of medical and paramedical staff, limited and partially ineffective diagnostic testing and shortage of personal protective equipment (PPE) 7 seem to be the main causes of the dramatic peaks of infections in hospitals.
In particular, shortage of “second level” PPE such as N95, FFP-2 and FFP-3 masks has led some authors to investigate the possibility of re-use following feasible sterilisation methods 8.
Swennen et al. 9 proposed a re-usable custom-made 3D-printed face mask as a valid alternative in order to reduce the need for disposable PPEs.
Another recently explored solution is the use of 3D printed adaptors that support the matching of widely used standard anesthetic heat and moisture exchange (HME) or industrial FFP3 filters, to commercially available snorkelling masks 10. Snorkelling masks were originally introduced in management of COVID-19 patients as an emergency interface for continuous positive airway pressure (CPAP). After that, diffusion of snorkelling masks as a protective tool for medical and paramedical staff occurred at a worldwide level.
The snorkelling mask is a single tool acting, at the same time, as a mouth/nose protection mask and as eye protection glasses. Moreover, the device is waterproof and capable of completely sealing the face of operators. The low price and wide availability of these masks make them a potentially rapid and feasible solution to provide PPE during the pandemic.
Greig et al. 11 were the first authors to publish a case report on safety testing of a snorkeling mask, which highlighted some interesting perspectives.
The standardisation of re-usable devices would lead to a significant reduction of costs and to a reduced need for disposable PPE. However, FDA or CE approval of such equipment is still needed, and research is expected to accelerate. The aim of our multicentre prospective study is to report on the use of different models of modified full-face snorkel masks (MFFSM) equipped with 3D printed adaptors for HME and FFP3 filters, evaluating several practical aspects such as safety and comfort from the perspectives of surgeons and anesthesiologists. Taking into account the demonstrated efficacy of HME and FFP3 filters, our study does not include a specific evaluation of the protective activity of MFFSM against infection. A brief discussion of the ethical and regulatory issues, with recommendations for the future, is also included.
Materials and methods
Tests of MFFSM devices were conducted from January-April 2020 in three tertiary referral centres: Otolaryngology Unit of the Morgagni-Pierantoni Hospital, Forlì, Italy, Intensive Care Unit (ICU), University of Pisa, Pisa, Italy, and Otolaryngology Unit and ICU of IRCCS Ospedale Policlinico San Martino, University of Genoa, Genoa, Italy.
Five different MFFSMs were tested during anaesthesiologic and head-neck surgical procedures in operating room (OR) and endoscopic evaluations in the ICU. The first and newest versions of Subea Easybreath (Decathlon, Villeneuve-d’Ascq, France), Seac Unica (Seac Sub, San Colombano Certenoli, Genova Italy), Siropack C-Voice, (Siropack, Cesenatico, Forlì - Cesena Italy), based on the Unica mask model, and the OceanReef Aria QR+ (Mestel Safety, Genoa, Italy) (Figs. 1A-E). Both the first and newest versions of Decathlon masks were modified by the addition of 3D printed adapters that support the possibility to connect the mask to standard anaesthesiologic filters (HME-FFP2 filter). In the same way, the OceanReef and Unica masks were equipped with a patented adapter coupled to a standard HME filter and industrial FFP3 (Figs. 2A-E).
The Siropack mask has an integrated upper filter and an internal microphone connected to an external amplification system that allows communication between the surgeon and/or the anaesthesiologist and the OR and ICU teams (Fig. 1D).
The equipment of the surgeon with all different MFFSM devices is shown in Figure 3. The use of MFFSM during different surgical procedures is shown in Figure 4. The Seac Unica mask was used only in diagnostic procedures in the ICU such as fibrolaryngoscopies and phoniatric evaluations.
The subjective analysis for every model of MFFSM was based on an online survey to assess operators feedback about the mask during different types of anaesthesiologic or surgical procedures in the OR and ICU. The survey was created with Google Survey (Mountain View, California, USA), so that each participant could complete the survey only once.
The survey was developed in an interactive fashion, with drafts revised by four different authors. In the final version of the survey, there were multiple/single open-ended and closed-ended questions.
Information on difficulty in breathing, optical distortion, and perceived weight of each mask was collected in the survey using a Visual Analogue Scale (VAS). These parameters were evaluated with a VAS using a 1-10 numerical rating scale (1 = no impact; 10 = high impact; intermediate values with increasing degrees of impact on tested items). Comfort and fitting, ease of use, and lateral and central vision quality were evaluated with a VAS using a 1-10 numerical rating scale (1 = high impact; 10 = no impact; intermediate values with decreasing degrees of impact on tested items).
Communication between members of the surgical team, due to the sound attenuation caused by the mask, was assessed using a VAS with a 1-5 score (1 = poor sound and lower verbal perception 1; 5 = excellent sound and good verbal perception; intermediate values with increasing degrees of impact on tested item). The presence of water condensation that did not allow a clear vision of the surgical field was also investigated and scored as: none, disturbing, not disturbing. Finally, localised pressure or facial sores were considered as: none, slight evident, evident with painful.
Responses were anonymously collected. Incomplete responses were excluded from the analysis.
In addition, with OceanReef mask, PO2 and PCO2 values were objectively monitored during surgical procedures by positioning a probe on the lobe of the pinna of surgeons (SenTec V - Sign System, SenTec AG, Therwil, Basel, Switzerland). Cleaning and sterilisation of MFFSM was carried out immediately after each procedure following the institutional protocols adopted for goggles and protective visors, which took about 30 minutes to complete.
Because there is no patient data, this study was exempt from the need for Institutional Review Board approval.
Statistical analysis
Descriptive statistical analysis was made by Mann-Whitney U test (SPSS version 22,0; IBM Corp, Armonk, NY, USA) to compare different items investigated in three MFFSM devices. Since it was not used for anaesthesiologic and surgical procedures, data for the Seac Unica mask was excluded from statistical analysis.
Results
General results
All procedures were performed in COVID-19 free patients, confirmed by preoperative polymerase chain reaction (PCR) test on nasal and oro-pharyngeal swabs. Modified Decathlon masks (with COVIDIEN® DAR HME filter) were tested in 25 surgical and anaesthesiologic procedures in the OR, Siropack in 15, and Ocean Reef in 10, respectively; Seac Unica was used in only 56 diagnostic endoscopic evaluations in the ICU. The mean duration of surgical and anaesthesiologic procedures was 55.9 minutes (Tab. IA). Data about surgical procedures are shown in Table IB.
Operator feedback about the MFFSM during surgical procedures was presented in Table II and plotted in Figure 5. Ease of wearing, comfort and fitting, achieved a median score of 9.
Central vision quality showed a median value of 9, whereas the median score for lateral vision was 7. Despite the mean excellent outcomes, both Decathlon masks, especially the first model, caused optical distortion at the converging gaze and was given a low score.
The absence of condensation inside the mask was reported by 94% of operators. On the other hand, the presence of condensation drops inside the chin valve was reported by some operators using Decathlon masks, especially after prolonged use (> 40 minutes), but did not interfere with the procedures. Ninety-six percent of testers did not complain of localised pressure or facial sores after use of the mask.
Operator feedback by mask
Differences in parameters between all masks used in surgical settings are reported in Table IIIA.
The quality of communication with the teams through the mask showed a significant difference in terms of effectiveness between the Siropack vs Decathlon masks (p = 0.04). By contrast, the Siropack model was felt to have a greater perceived weight compared to the others (p = 0.03) due to the integration of a microphone and external amplificatory system (Tab. IIIA).
On the other hand, concerning the remaining items, no significant differences were seen between Siropack and OceanReef masks.
During pO2/pCO2 monitoring with the Ocean Reef model, the mean value of pO2 was 96.8 mmHg and the mean of the highest pCO2 values recorded was 37.1 mm H2O, which was within the normal range (p < 40 mm H2O).
Notably, ICU operators performed more than one procedure without removing the mask. Each procedure took a mean time of 25 minutes, while the mean total wearing time was 4 hours. Condensation was reported only by operators wearing the mask for more than 4 hours, which did not, however, interfere with the procedures.
Central vision quality with the Seac Unica mask showed a mean value of 9.1, lateral vision quality of 9 and optical distortion of 8 (Tab. IIIB).
Discussion
The COVID-19 pandemic, worldwide, was characterised in its first phase by a shortage of PPE, especially high-performance filtering masks FFP2 and FFP3 for healthcare workers (HCW). For this reason, industrial PPE devices (mask, filters, goggles) are tested and commonly employed for COVID-19 patients in hospitals and more generally in healthcare systems.
It is also extremely important to underline that all HCW performing trans-nasal and trans-oral endoscopic examinations (i.e. pharyngo-laryngoscopy, bronchoscopy, etc.) are exposed to the highest risk of infection6. Therefore, an adequate prevention of risk should be adopted, starting from the assumption that all patients are potentially infected with SARS-CoV-2 until proven otherwise.
For these reasons, the scientific community has punctually reported detailed international protocols and recommendations to minimise the risk of viral diffusion and infection, including the observance of specific surgical and anaesthesiologic procedures, new surgical team settings and constant use of adequate PPE 12,13.
In this dramatic scenario, the development of new PPE devices is mandatory to guarantee all HCW the safest level of protection and comfort. Our study focused on the validation of MFFSMs as safe and protective equipment against SARS-CoV-2 infection, testing and both judging subjectively and objectively the efficacy and usability of these personal and customised devices during diagnostic and therapeutic procedures on the upper aerodigestive tract.
All tests were performed in patients who were confirmed to be SARS-CoV-2 negative. The aim of the study was to test the feasibility of the masks before using them on COVID-19 positive cases.
All the masks tested are currently available on the market, and significant differences in the quality among the devices were not seen.
All MFFSMs tested were easy to use and gave all operators a sound “feeling” of protection. It is also worth mentioning that the average score of the item related to the ease of wearing showed a median value of 9.
The actual viral filtration capability was not tested and was not the goal of the present study. However, the filtering power of the system is based on the anaesthesiologic and professional filters, which are certified and widely used for a long time. The immediate possibility to combine commercial snorkelling masks with dedicated filters renders MFFSMs a safety emergency tool than can be successfully and immediately employed.
The values of pCO2 were tested only for the OceanReef mask, which were always within normal ranges throughout the procedure, objectively showing the stability of respiratory parameters that indicate correct breathing and normal air circulation in the mask. However, due to the similar structure of all devices analysed, this objective parameter is likely to be similar to the other masks as well.
However, comparison between MFFSMs and other conventional protective devices must be carefully taken into account. FFP2-3 masks, for instance, loose their filtering efficacy if they wet due to fluid penetration in the fabric; therefore, in case of incomplete face sealing, viral inhalation could not be excluded. Moreover, the need for FFP2-3 masks to be disposable increases both costs and problems related to their disposal.
Surgical goggles usually limit the vision inferiorly and laterally, often become foggy and cause significant discomfort. Face shields can be cumbersome, without adequate ventilation.
On the basis of our experience, the utilisation of a single full-face protection device such as a MFFSM instead of a combination of a FFP2 mask and goggles seems to be more user-friendly. Moreover, the respiratory fit test of the MFFSMs seems to be much more reliable than the respirator fit test of a conventional FFP2 mask.
The wide range of responses for items related to the comfort may reflect the less well-defined concept of “comfort” and individual sensitivity to a claustrophobic feeling induced by prolonged use of the device, but no significant differences were seen among the different models.
The optical properties of the masks may play a key role in their effective use in a surgical setting. Central vision was described as sufficient by most operators, but the masks were rated as critical in terms of lateral view, which is much less important during intubation manoeuvers. Different amounts of optical distortion were described for all the MFFSMs, such as barrel, pincushion, and mustache, which is related to the different shapes of the transparent shield of the masks. However, the optical distortion value was rated as non-critical for all masks.
Some breathing difficulty was reported by operators using all types of MFFSM, which is probably related to the strength of air flow of the respiratory system which is plugged by a filtering membrane. The moderate increase in dyspnoea was mainly related to individual sensitivity and use of a double filter vs a single filter.
Furthermore, all MFFSM originally designed for snorkelling did not allow the use of loupes or even normal glasses. In light of this, an integrated magnification system and lighting would be useful, especially for specialists facing with diseases of the upper airways. This issue could be overcome by customised development of a new mask that is specific for clinical and surgical needs.
Another critical issue of extreme importance to be considered in future is to decrease, as much as possible, the weight of the device, even with the integration of different accessories, to avoid discomfort and neck fatigue.
All MFFSM evaluated are immediately available and may be considered to be a practical emergency solution for personal protection in the operating room and ICU for Head and Neck and Anaesthesiologist teams during the COVID-19 pandemic. MFFSMs could play a key role in the emergency when conventional PPE (FPP2 or FPP3, transparent shields or goggles) is not immediately available or are in shortage. All the teams included in the study considered MFFMs to be a valid and interesting alternative option, even in the case that conventional PPE is available.
All models provided a waterproof barrier for the eyes, nose and mouth, which means for the entire face. The internal sealed respiratory space is filtered by certified devices, giving the user a reasonable level of biological safety, awaiting official certification. Breathing in the mask seems to be perceived in a different way by different surgeons, and sometimes with some degree of discomfort. The visualisation of the surgical field with MFFMs could allow the surgeon to perform regular activities in wide variety of surgical and anaesthesiologic situations, including selected lengthy and demanding surgeries. Illumination and voice communication system were only available in one MFFSM, which are recommended in the future. Nevertheless, a heavier MFFSM is the price to pay to include a double filter option and an integrated system of illumination and communication.
Conclusions
In addition to the required certifications, which will take a reasonably long time for official approval by different authorities, all the clinicians had common agreement for strongly recommended improvements:
- a more customised mask for medical and surgical needs;
- a fundamental requisite should be the possibility to use personal glasses inside the mask;
- a miniaturised microphone/loudspeaker system is recommended for all medical activities;
- for special activities (ENT, oral surgeons, plastic surgery, etc.), an integrated head lamp and possibly a magnifying loupe system would be valuable.
In the future, continuous cooperation and close interaction between clinicians and engineers will offer more performing devices for different branches of the healthcare system. Clinicians will be able to better define their needs and priorities, while manufacturers will focus on production of devices that meet all medical requirements.
Figures and tables

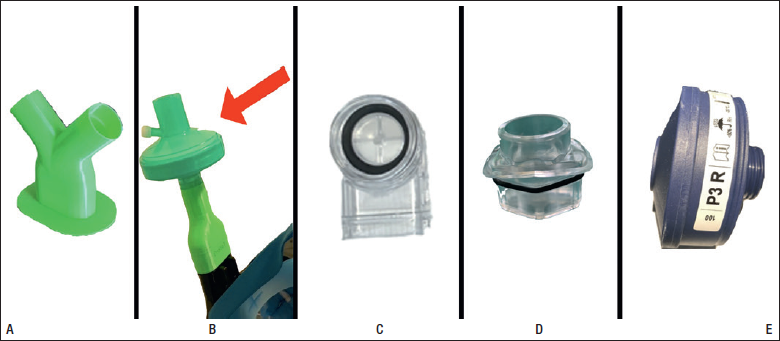

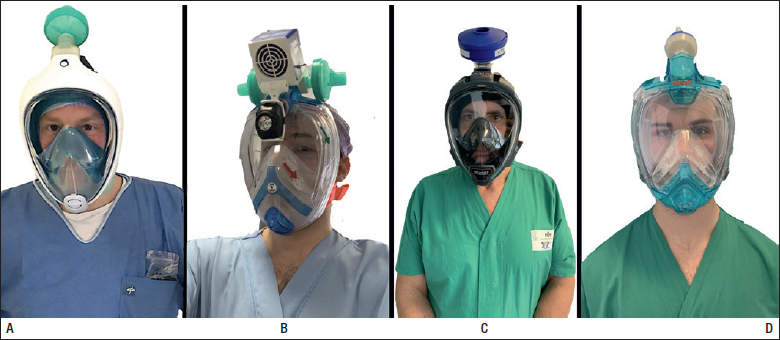

Figure 1.(A,B) first and newest versions of Decathlon Subea Easybreath mask; (C) Seac Unica mask; (D) Siropack C-Voice mask; (E) Ocean Reef Aria QR+ mask.
Figure 2.(A) 3D printed adapters for Decathlon Subea Easybreath; (B) Decathlon mask connected to standard anaesthesiologic filter (HME-FFP2 filter; arrow) with a 3D printed adapter; (C) adapter that allows connection of different industrial filters to the Ocean Reef Aria QR+ mask; (D) Seac Unica 3D printed adapter; (E) industrial FFP3 filters that can be used with the OceanReef Aria QR+ mask.

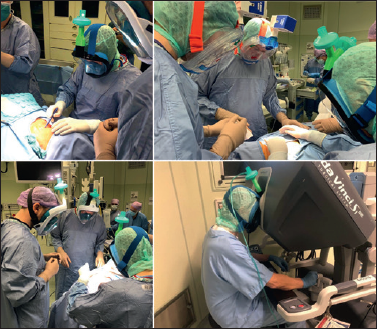

Figure 3.Surgeons wearing four different types of modified snorkelling masks; (A) modified Decathlon mask; (B) Siropack C-Voice mask; (C) Ocean Reef Aria QR+ mask; (D) Seac Unica mask.
Figure 4.Arrangement of the surgical team, equipped with modified full-face snorkel masks, during different surgical procedures.

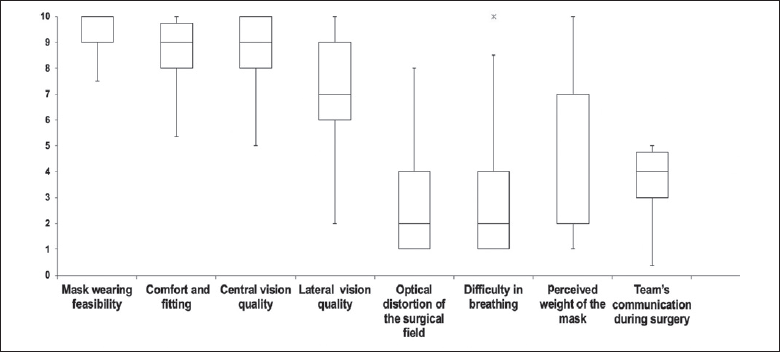

Figure 5.Box plot; operator feedback on the use of modified full-face snorkelling masks (Seac Unica excluded).
| Number of all procedures | N = 106 |
|---|---|
| Modified Decathlon masks (HME filter) | 25 (24%) |
| Siropack mask (HME filter) | 15 (14%) |
| Ocean Reef Aria (P3 industrial filter) | 10 (9%) |
| Seac Unica (HME filter) | 56 (53%) |
| Number of surgical and anesthesiologic procedures | N = 50 |
|---|---|
| ENT surgery | 35 (70%) |
| Anaesthesiologic procedures | 15 (30%) |
| Role of surgeon/operator | |
| Intubation | 15 (30%) |
| First surgeon | 19 (38%) |
| Second surgeon | 7 (14%) |
| Third surgeon | 9 (18%) |
| Type of anaesthesia | |
| General anesthesia | 48 (96%) |
| Local anaesthesia | 2 (4%) |
| Type of procedures | |
| Tracheotomy | 19 (38%) |
| Oro-tracheal intubation | 15 (30%) |
| Hemi-thyroidectomy | 5 (10%) |
| Parotidectomy | 5 (10%) |
| Total thyroidectomy | 4 (8%) |
| Neck dissection | 1 (2%) |
| Transoral robotic surgery | 1 (2%) |
| Mean time of surgical procedures (min)* | 55.9 |
| Standard deviation | 45.5 |
| Higher value | 180 |
| Lower value | 5 |
| Median | 40 |
| Mean | Median | |
|---|---|---|
| Ease of wearing | 9.2 ± 0.8 | 9 |
| Comfort and fitting | 8.6 ± 1.5 | 9 |
| Central vision quality | 8.7 ± 1.4 | 9 |
| Lateral vision quality | 6.7 ± 2.1 | 7 |
| Optical distortion of the surgical field | 2.8 ± 2.1 | 2 |
| Difficulty in breathing | 2.7 ± 2.3 | 2 |
| Perceived weight of the mask | 3.8 ± 2.7 | 2 |
| Communication with team during surgery* | 3.7 ±1 | 4 |
| Surgeon pCO2 min** | 32.7 ± 0.5 | |
| Surgeon pCO2 max** | 37.1 ± 0.5 | |
| Surgeon p02 mean** | 96.8 ± 0.8 | |
| Localised pressure or facial sores | ||
| Not evident | 48 | 96% |
| Slight evident | 2 | 4% |
| Evident with painful | - | - |
| Modified Decathlon mask | Siropack mask | Ocean Reef mask | p | |
|---|---|---|---|---|
| Time of surgery | 48.0 ± 55.8 | 55 ± 36.3 | 53.5 ± 18.7 | > 0.05 |
| Ease of wearing | 9.4 ± 1 | 8.9 ± 0.7 | 9.5 ± 0.5 | > 0.05 |
| Comfort and fitting | 8.7 ± 1.8 | 8.1 ± 0.7 | 9.1 ± 0.7 | > 0.05 |
| Central vision quality | 8.8 ± 1.7 | 8.3 ± 2.2 | 9 ± 0.8 | > 0.05 |
| Lateral vision quality | 7± 2.8 | 6.5 ± 1 | 6.8 ± 0.7 | > 0.05 |
| Optical distortion of the surgical field | 2.9± 2.7 | 2.4 ± 1.1 | 3.1 ± 2.2 | > 0.05 |
| Difficulty in breathing | 2.9 ± 2.9 | 2.7 ± 2.3 | 2.1 ± 2.4 | > 0.05 |
| Perceived weight of the mask | 2.9 ± 2.4 | 5.8 ± 1.1 | 1.8 ± 0.5 | 0.03 * |
| Communication with team during surgery**** | 3 ± 0.9 | 4.1 ± 0.7 | 3.8 ± 0.7 | 0.04 **0.3 *** |
| Average value | Median | |
|---|---|---|
| Ease of wearing | 8.2 ± 2.3 | 9 |
| Comfort and fitting | 9.1 ± 1.4 | 9 |
| Central vision quality | 9.1 ± 1.2 | 9 |
| Lateral vision quality | 9.0 ± 1.6 | 9 |
| Optical distortion | 2.0 ± 2.0 | 1 |
| Difficulty in breathing | 2.6 ± 2.0 | 2 |
| Perceived weight of the mask | 3.5 ± 2.4 | 3 |
| Communication with team | 4.2 ±1 | 4 |
