Abstract

Ménière’s disease (MD) is a chronic condition characterised by fluctuating hearing loss, intermittent vertigo, tinnitus and aural fullness. Its anatomical and pathological counterpart is represented by endolymphatic hydrops (EH). Recent development and progress in magnetic resonance (MR) imaging techniques has enabled visualisation of EH in living human subjects using a 3 Tesla (T) scanner and gadolinium- based contrast-agent (GBCA) via intravenous (IV) or intra-tympanic (IT) administration. Data emerging from the literature about MR im- aging of EH in MD patients are limited, and we therefore reviewed the most common MR imaging findings in the study of the endolym- phatic space in both MD and non-MD patients.

Introduction

Ménière’s disease (MD) is a chronic condition characterised by fluctuating hearing loss, intermittent vertigo, tinnitus and aural fullness. It is a relatively common disorder, with a prevalence of 200-500 per 100,000 ¹. Its anatomical and pathological counterpart is represented by endolymphatic hydrops (EH), a distension of the endolymphatic space of the inner ear into areas that are normally occupied by the perilymphatic space. The most common affected areas are the cochlear duct and the saccule, but EH may also involve the utriculum and semicircular canals ². Guidelines for diagnosis of this syndrome were established in 1995 by the American Academy of Otolaryngology - Head and Neck Surgery (AAO-HNS). The most recent and revised classification considers two major categories: definite and probable Ménière’s disease ³. Diagnosis of definite MD is made by the presence of two or more episodes of vertigo, audiometrically documented low-to-medium frequency sensorineural hearing loss in one hear, and fluctuating aural fullness. Probable MD is defined by two or more episodes of vertigo, and fluctuating aural fullness in the affected ear ⁴. To evaluate the presence of EH, both electronystagmography and electrocochleography tests can be used, which reflect the reduced vestibular response and the elevation of inner ear pressure through distension of the basilar membrane, respectively. An emerging technique in assessment of EH is vestibular evoked myogenic potential (VEMP), a neuroelectrophysiological test that evaluates the otolithic organs of the utricle and saccule. VEMP may be abolished in patients with EH in the vestibule. Imaging studies in the past were mainly used to exclude retro cochlear disorder, such as schwannoma. However, the recent development and progress of magnetic resonance (MR) imaging techniques has enabled visualizsation of EH in living human subjects using a 3 Tesla (T) scanner and gadolinium-based contrast-agent (GBCA) via intravenous (IV) or intra-tympanic (IT) administration ^{5 6}. Data from the literature about MR imaging of EH in MD patients are limited due to discrepancies in patient selection and MR assessment criteria. For this reason, our purpose is to provide insight of the current MD imaging scenario. We reviewed the main techniques in assessment of EH and most common MR imaging findings in study of the endolymphatic space in both MD and non-MD patients.

MR findings in MD patients

In June 2017, a structured search was performed in PubMed using the following key words: “MRI” AND “endolymphatic hydrops” (n = 153), “MRI” AND “Ménière’s disease” (n = 213). The search was filtered for studies on human subjects and published in English language. In order to have a clearer view of the potential diagnostic role of MR imaging in the assessment of patients with MD, we analysed only MR findings of studies on patients with definite MD according to the AAO-HNS criteria, who underwent MR imaging at 3 Tesla scanner with IT or IV administration of GBCA and volumetric acquisition. We excluded from the review: 1) case reports, reviews and metanalysis; 2) studies on patients enrolled according to diagnostic criteria other than those of the AAO-HNS, or in which clinical evidence of diagnosis (“definite”, “probable” or “possible”) according to those criteria was not specified; 3) studies in which the hydrops was not assessed by MR standardised qualitative, quantitative or semi-quantitative methods; 4) studies in which a per-ear analysis (symptomatic ear versus asymptomatic ear) of MR findings was not performed for each subject.

After the titles and abstracts of preliminary articles were read, 18 articles were deemed eligible. Two readers (F.L. and S.C., radiology residents with 1-3 years of experience in otoradiology, respectively) then read the articles in their entirety, confirming the eligibility for 17 of them. They subsequently extracted the following information from eligible studies: first author, total number of subjects (MD patients and controls), MR acquisition and analysis methods and MR findings of particular interest for the evaluation of the hydrops in the symptomatic/asymptomatic ears of the enrolled subjects.

Results are reported separately for studies adopting IT-GBCA administration and those adopting IV-GBCA administration. The results of the search are summarised in Tables I and II.

Results and discussion

MR technique

MR assessment of the endolymphatic space can be performed using both IT and IV administration of GBCA ⁷. The IT-GBCA technique consists in IT administration of 0.3-0.6 ml of GBCA, diluted 8-fold, into the tympanic cavity by puncture of the tympanic membrane. The contrast medium diffuses into the perilymph, but not in the endolymph, depending on the permeability of the round window, giving a perilymph positive image (PPI) ⁸. MR imaging is usually performed at 24 hours after administration, and a heavily T2-weighted 3D-FLAIR sequence with variable flip angle is usually preferred. The endolabyrinth appears to have a lower signal compared to the surrounding perilymph. The inversion time of the 3D-FLAIR can also be shortened to suppress the signal of the perilymph and increase that of the endolymph, thus giving a positive endolymphatic image (PEI) ⁹. 3D inversion-recovery turbo spin-echo with real reconstruction (3D-real IR) allows to separate the signals from the perilymph (positive), endolymph (negative) and surrounding bone (zero) using an inversion time between the null point of the perilymph containing the contrast medium and the endolymph. However, this sequence is less sensitive to low GBCA concentrations than 3D-FLAIR ⁹.

The IV-GBCA technique consists in IV administration of a recommended dose of GBCA (usually 0.1 or 0.2 ml/Kg) that slowly accumulates in the perilymph, but not in the endolymph, depending on the permeability of the blood-labyrinthine barrier, thus giving a PPI ¹⁰. Two types of sequences are recommended: 3D-real IR or heavily T2-weighted 3D-FLAIR ⁷. The optimal time for MR acquisition is about 4 hours from the contrast-medium administration as demonstrated in another study concerning various fluid-containing spaces ¹⁰. It is important to note that the visibility of the endolymphatic space depends on the inversion time. For this reason, it is recommended to acquire MR images in control subjects, in order to establish the normal standard for these sequences. MR images can be directly evaluated after acquisition or read post-processed. For example, in HYDROPS images (Hybrid of the reversed image of the positive endolymph signal and native image of positive perilymph signal) the PEI is subtracted from the PPI ¹⁰. HYDROPS2 is reconstructed by subtracting the MR cisternography sequence (usually 3D heavily T2-weighted Turbo spin echo sequence with variable flip-angle) from the PEI ¹¹. HYDROPS and HYDROPS2 can be multiplied for the MR cisternography image to further increase the contrast-to-noise ratio (CNR) obtaining the HYDROPS-Mi2 and HYDROPS2-Mi2 images, respectively ¹². Some authors suggest that the use of maximum intensity projection (MIP) reconstruction of heavily T2-weighted 3D-FLAIR represents a robust and accurate method for assessment of EH ¹³.

Although IT-GBCA technique has a big advantage of creating a stronger perilymph signal, the IV-GBCA technique is preferred as it is less invasive, requires only four hours to complete the MR examination and allows study of both ears in the same session ⁷.

Findings for IV-GBCA administration

The most common method for assessment of the vestibular and cochlear endolymphatic spaces was firstly described by Nakashima et al. ¹⁴ (Figs. 1-3). This method assesses the vestibular endolymphatic space (VES) by calculating the ratio of the area of the VES to the entire vestibule (VES/vestibule ratio) in the axial plane and defining the vestibular EH (vEH) absent if this ratio is < 33%, mild if between 33% and 50% and significant if > 50%. In addition, Nakashima et al. ¹⁴ evaluated the cochlear endolymphatic space looking at displacement of Reissner’s membrane and defining the cochlear EH (cEH) as mild if there is a Reissner’s membrane displacement with the area of the endolymphatic compartment not exceeding the area of the scala vestibule, and as significant when the endolymphatic compartment exceeds the area of the scala vestibule ⁸. While the aforementioned diagnostic criteria for cEH are used by almost all authors, different cut-offs of the VES/vestibule ratio for the identification vEH were further proposed.

Mild vEH, according to Nakashima’s criteria, was reported from 94% to 100% of symptomatic ears of MD patients, but also from 53% to 100% of asymptomatic ears ^15-17. Sano et al. detected mild vEH in 4/6 (66%) symptomatic ears of patients with other otological diseases ¹⁵. Attyè et al. identified at least mild vEH in 27/30 (90%) ears of healthy volunteers ¹⁸. These data suggest that a VES/vestibule ratio > 33% has a low specificity in identifying the affected ear of MD patients with unilateral symptoms and in differentiating MD from other otological diseases in which a secondary vEH can occur. However, this cut-off could represent a rule out factor in MD patients in which a define diagnosis has not been clinically reached, due to its high sensitivity.

Severe vEH, according to Nakashima’s criteria, was found in 46% and 68% of the symptomatic MD ears in two studies ^{18 19}. However, Pakdaman et al. did not find it in 32 asymptomatic ears of MD patients ¹⁹. Furthermore, vEH was reported in a range from 0% to 30% of asymptomatic ears of healthy volunteers ^{18 19}. Severe vEH was identified in 15/128 (11%) and 0/11 (0%) symptomatic ears of patients with other otological diseases, respectively ^{19 20}.

Although the VES/vestibule ratio > 50% may have a lower sensitivity to detect MD ears, these data suggest that it may represent a rule in criteria for MD, since it has a good specificity in both differentiating MD ears from healthy ears and those affected by other otological disorders.

Other potential cut-off values were investigated. Sepahdari et al. calculated a VES/vestibule ratio of 45% as two standard deviations above the mean of a group of patients with sensorineural hearing loss ¹³. Using this cut-off value, they found vEH in 6/12 of the symptomatic ears of MD patients (50%) suggesting that this diagnostic criterion cannot be used to exclude a form of MD presenting with sudden hearing loss ¹³. Yoshida et al. reported that a VES/vestibule cut-off value of 41.9%, calculated by the ROC curve, has a sensitivity of 88.5% and a specificity of 100% in differentiating MD from healthy ears ¹⁶.

According to Nakashima’s criteria, cEH was found in 36%-86% of symptomatic ears in three large cohorts of MD patients ^16-18. Yoshida et al. also assessed asymptomatic ears of both MD patients and healthy volunteers, detecting cEH in 46% and 33% of them, respectively ¹⁶. Attyè et al. found cEH in 13% of healthy volunteers ¹⁸. The latter research group found cEH in 24% of ears of patients with recurrent peripheral vestibulopathy ²⁰. These data suggest that cEH, as defined by Nakashima’s criteria, cannot be used to rule out MD, and can be found in approximately up to one-third of patients with other otological disease of otherwise healthy subjects, resulting less specific and preventing radiologists from diagnosing MD without the support of clinical data.

EH according to Nakashima’s, either vEH (VES/vestibule ratio > 33%) or cEH, was reported in all 60 ears (30 MD patients and 30 healthy subjects) studied by Attyè et al., giving a sensitivity of 100% but a specificity of 0% ¹⁸. In contrast EH, defined by the presence of either vEH (VES/vestibule ratio > 50%) or cEH, was reported in 77%-100% of symptomatic ears of MD patients 18,24,25, in 0%-22% of asymptomatic ears (14,20-22), and in 24% of ears of patients with recurrent peripheral vestibulopathy ²⁰. This means that the presence of EH, independently from the definition of vEH, could be a good criterion/parameter for detecting the affected side of MD patients with unilateral symptoms, but it does not allow radiologists to differentiate MD from other otological disorders. In addition, EH often is not a pathologic finding, having been reported in a large number of healthy subjects.

More recently, another research group assessed hydrops using a saccular morphology-based method. The authors defined saccular hydrops as a saccule to utricle ratio (SURI) ≥ 1, reaching a sensitivity of 50% (15/30 patients) and a specificity of 100% in differentiating the symptomatic ears of patients with Ménière’s disease from the asymptomatic ears of 30 healthy volunteers ¹⁸. However, it still remains unclear what the diagnostic role of this method is in differentiating MD from other otologic disorders.

Findings for IT-GBCA administration

When studying MD patients by IT-GBCA administration, Nakashima’s method to investigate and assess the vestibular and cochlear endolymphatic spaces should be used, as it represents a suitable and reliable method ¹⁴.

Based on the common knowledge of drugs entry through an oval window pathway in rats, Shi et al. were among the first able to demonstrate a compromised passage through the oval window, showing vEH in 3 of 4 patients with definite MD ²³. Claes et al., in contrast, did not find any added value from the use of the IT method in evaluating the presence of EH after the injection of GBCA after a surgical procedure: the presence of cEH and vEH was demonstrated in a small percentage of patients (25% and 16% respectively) ²⁴. A possible explanation for this low rate of positive findings can be found in the dilution factor of the administered GBCA. IT administration is still off-label and many patients are reluctant to receive a puncture to the tympanic membrane, so that unilateral IT injection is usually performed even in cases when bilateral EH is suspected, underestimating the possible involvement of the contralateral ear. The study from Wu et al. is one of the few in which MD patients underwent to a bilateral IT administration: presence of vEH was found in 75 of 108 symptomatic ears (69%) and found cEH in 9 of 108 contralateral ears (8%) ²⁵. The presence of EH in the contralateral asymptomatic ears was demonstrated by Lida et al. by using both IT and IV administration: 67% of asymptomatic ears were shown to have both vEH and cEH ²⁶. A comparison between the results obtained after simultaneous IV-IT administration was made by Naganawa et al., by using 3D-real IR images for IT-IV side and HYDROPS2 for IV ²⁷. Only HYDROPS images were able to demonstrate EH in all ears VEH and cEH were demonstrated in 89% and 67% of ears, respectively. A significant rate of vEH (55%) and cEH (44%) was also found in the contralateral asymptomatic ears ²⁷.

Differences may also exist between the times of delayed postcontrast imaging, most likely being performed after 24 hours, but in some cases after 4 hours ²⁸. The impact of this discrepancy on the imaging evaluation of MD patients is unclear: Suga et al. were able to assess the presence of vEH in 4 of 6 patients with definite MD independently from the time of acquisition ²⁸. The presence of EH in other audiological disorders can be shown by IT administration: Hornibrook et al. assessed the presence of EH not only in patients with definite MD (14/30 ears), but also in patients with other audiological disorders (3/45 ears), even if at a very low rate (6%) ²⁹. To address potential pitfalls in the acquisition or in the interpretation of the images, Bykowski et al. used an 8 channel surface coils and acquired MR images 26 hours after monolateral IT administration in 6 definite MD patients ³⁰. Variable FLAIR inversion time images were used to determine the impact on fluid-suppression interpretation. 100% of definite MD patients (6/6) showed both vEH and cEH in the symptomatic ears.

Conclusions

MR imaging of the endolabyrithine space can be easily performed using a 4 hour-delayed volumetric acquisition after IV administration of GBCA. Thus, IT administration of GBCA, which is more invasive, is not recommended. Recent achievements in this technique have allowed radiologists to detect cochlear or vestibular EH on MR imaging. However, neuroimaging evidence from the literature and pathological findings described in cadavers suggest that EH does not represent exclusive findings of MD patients and is probably not always pathological, since it has been often described in normal ears. For this reason, quantitative MR assessment is most likely not sufficient in diagnosis of MD, and morphology-based criteria should be investigated. In line with this view, the more recent SURI method, described by Attyè et al. ¹⁸ represents a promising tool in differentiating MD ears from ears affected by other pathologies, but further studies should investigate this method and confirm its accuracy. Along with this, it is mandatory to use only a 3 Tesla MR in the diagnostic workup of MD. We are still far from being able to use MR imaging as a new diagnostic tool for MD and its role remains mainly to exclude other diseases when clinical manifestations are not clear, and a definitive diagnosis of MD has not been reached.

Figures and tables

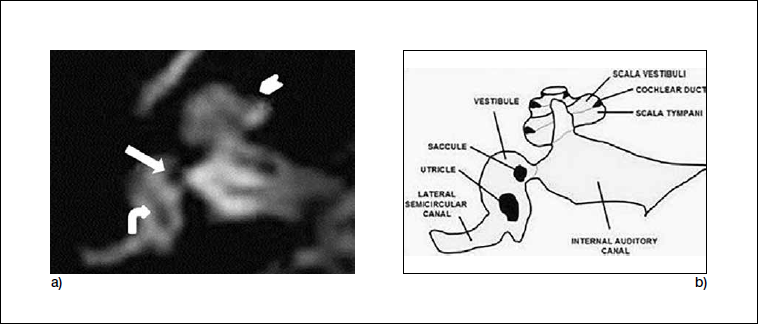

Fig. 1.a) and b) T2-weighted FLAIR and schematic illustration image depicting the normal appearance of the vestibular endolymphatic space: the saccule (straight arrow) and the utricule (curved arrow) occupy less than 33% of the vestibular space (VES/vestibule ratio); there is no enlargement of endolymphatic space in the cochlea.

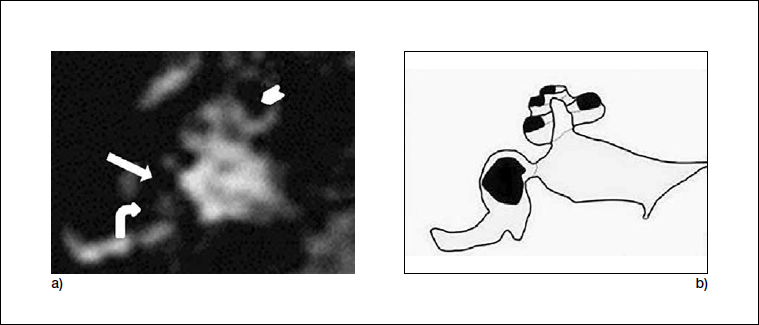

Fig. 2.a) and b) T2-weighted FLAIR and schematic illustration of the endolymphatic space image demonstrate the presence of mild vEH, with a VES/vestibule ratio > 33% (straight arrow points to saccule; curved arrow points to utricle); there is also mild cEH, represented by displacement of the Reissner’s membrane with the area of the endolymphatic compartment not exceeding the area of the scala vestibule (arrow-head).

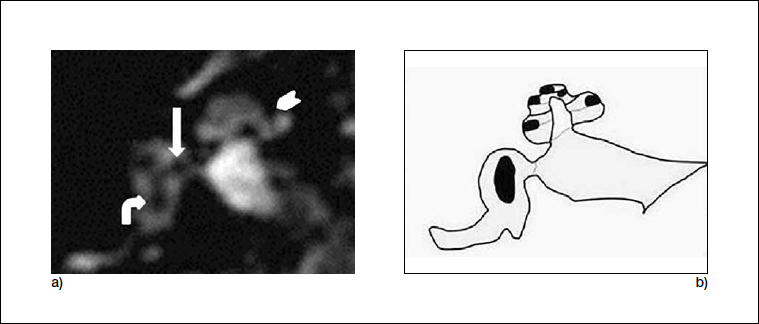

Fig. 3.a) and b) T2-weighted FLAIR and schematic illustrations of the endolymphatic space image show both significant vEH and cEH. VES/vestibule ratio is > 50% (straight arrow points to saccule; curved arrow points to utricle) and the endolymphatic compartment exceeds the area of the scala vestibuli (arrow-head).
