Nerve and vein preserving neck dissections for oral cancers: a prospective evaluation of spinal accessory nerve function and internal jugular vein patency following treatment| ACTA Otorhinolaryngologica Italica

Abstract

Nerve and vein preserving modification of the radical neck dissection is commonly used in the management of oral squamous cell cancers.
There is limited literature addressing nerve function and vein patency following treatment. We prospectively analysed 65 patients with nerve
conduction study using surface electromyography at baseline, 1 month and 6 months post-surgery and colour Doppler of the internal jugular
vein at baseline and 1 month post-surgery. We also studied functional outcomes of nerve sparing with arm abduction test and Neck Dissection
Quality of Life questionnaire. There was a statistically significant increase in mean latency of motor action potential and decrease in the mean
amplitude of the motor action potential following surgery, suggesting nerve dysfunction. Following surgery, there was a significant decrease
in the diameter of the vein as well as an increase in the velocity of blood flow; there was partial thrombus in 5% of individuals. In conclusion,
even though nerve dysfunction compromised shoulder abduction, vein dysfunction rarely resulted in any significant clinical impact.

Introduction

Squamous cell carcinomas of the head and neck (HNSCC) account for 90% of all malignant diseases of the head and neck region ¹. The oral cavity lined by stratified squamous epithelium is the most common site of HNSCC. The highest incidence of carcinomas of oral cavity and oropharynx are in South East Asia, where chewing tobacco with betel quid (paan) is a common practise. According to GLOBOCAN 2012, the estimated 5 year prevalence of lip and oral cavity malignancies worldwide is 2.2% with a male preponderance (3.1% vs. 1.4%) ².

The single most important factor affecting prognosis in HNSCC is the status of cervical lymph nodes at presentation, and more than 40% of patients with oral and pharyngeal squamous cell carcinomas present with regional spread ³. The management of the neck in oral cancers depends on whether the nodes are clinically involved, and if not then on the risk of occult metastasis. For oral cancers, the estimated incidence of subclinical disease in a clinically N0 neck is 15 to 20%. When regional metastasis is clinically detected, comprehensive clearance of all regional lymph nodes is recommended, whereas for a cN0 neck, selective neck dissection is performed. The understanding that optimal lymph nodal clearance can be achieved with conservative surgical procedures such as preservation of the spinal accessory nerve (SAN) and internal jugular vein (IJV) without the added risk of recurrences has shifted the focus to so-called modified radical neck dissections ⁴. Among the various modifications, modified neck dissection (MND) type-II preserving SAN and IJV is popular, with the preservation being thought to reduce the morbidity of neck dissection ⁵. Though MND type II preserves two of the most important non-lymphatic structures, few studies have shown that the function of the preserved nerve as well as the patency of the vein may be suboptimal ^{6 7}. There is paucity of published data on the functionality and quality of life after these non-radical surgeries at present, and hence the present study was undertaken to look at the overall impact of MND type II surgery with specific reference to function of the SAN and patency of the IJV together with the postoperative quality of life.

Materials and methods

This was prospective study of consenting patients with biopsy proven oral squamous cell cancer (OSCC) of operable cT (T1 to T4a, AJCC/TNM 2010) stage undergoing primary surgery with modified neck dissection type II (defined as preservation of both the SAN and IJV) over a period of one year from June 2014 to May 2015. The main exclusion criteria included cN2 or N3 disease, prior treatment (surgery, radiotherapy or chemotherapy), gross invasion of XI nerve or internal jugular vein either preoperatively or at surgery, previous or intra-operative injury to the nerve or vein, cardiac pacemaker (contraindication for nerve conduction studies), patients on anticoagulant therapy and patients who developed postoperative complications that prevented evaluation at 3 to 4 weeks.

All eligible patients were subjected to nerve conduction study (NCS) for measurement of amplitude and latency of Motor Action Potential (MAP) of the Spinal Accessory Nerve and colour Doppler study for calibre, patency and velocity of the IJV preoperatively. Patients underwent appropriate surgery including nerve and vein sparing neck dissection (MND type II). Following surgery, a repeat NCS was done at one and 6 months postoperatively and colour Doppler evaluation of the vein was done at one month postoperatively. The angle of arm abduction was measured with a goniometer pre-and post-operatively, and the quality of life after neck dissection was assessed by a Neck Dissection Quality of Life (NDQOL) questionnaire as described previously by Giordano et al. ⁸ (Table I) and the results were compared using a chi square test. Postoperatively, the use of adjuvant chemoradiation or radiotherapy was based on standard guidelines.

Nerve conduction study

The nerve conduction study was done by MEDELEC synergy 10 channel machine using surface electrodes to obtain electrophysiological readings from the nerve and muscles. The test was carried out in a sitting position as per the recommendations of Surface Electro MyoGraphy for the Non-Invasive Assessment of Muscles (SENIAM) project group ⁹. The nerve was stimulated at one end and recorded at other end near the muscle for 0.2 msec with three times the supramaximal stimulus. The amplitude and latency of the MAP were measured and compared.

Colour Doppler of the IJV

In the supine position, after applying coupling gel over the neck, the ultrasound probe was placed over the IJV to look for signs of thrombus (internal echoes and non-compressibility). The differential flow of blood in veins was detected by sound waves by measuring the calibre, velocity and phasic variation.

Statistical analysis

All data were recorded in a pre-designed Performa and were managed using Microsoft Excel 2007; data were presented as mean ± SD. The paired t test and repeated measure ANOVA were used for qualitative data and the chi square test was used for quantitative data. Statistical analysis was performed using SPSS (statistical package for social sciences) Version 21 software, and a p value less than 0.05 was considered significant.

Results

Over a period of one year, of the 100 consenting patients with biopsy proven OSCC, 35 did not meet the selection criteria for various reasons (Fig. 1). All 65 eligible patients, following preoperative baseline NCS and colour Doppler of the IJV, underwent neck dissection with preservation of the SAN and IJV. Five patients with intra-operative injury to the nerve and 12 patients with post-operative wound complications were also excluded from the final analysis. Of the remaining 48 patients, 6 patients were lost to follow-up and two patients died of malignancy (Fig. 1). The mean (± SD) age of patients was 55.86 (± 10.22) years, the majority were female (50 of 65, 77%) and most had left side lesions (45, 69%). A total of 42 of the 65 patients were less than 60 years of age and 37 patients received postoperative adjuvant neck irradiation.

Nerve conduction study

Latency: The mean (± SD) preoperative, at 1 months and at 6 months latency of the MAP of the spinal accessory nerve were 2.13 (± 0.79), 2.75 ± 1.16 and 3.01 (± 1.51) msec respectively. The differences were statistically significant (p < 0.001). The latency (Figs. 2, 3) showed an increasing trend at one month and at 6 months postoperatively in most subjects except in 6, who showed an increase in latency at one month and decrease in latency at 6 months, but the value never fell below the pre-operative value. Interestingly, 5 of these 6 patients did not receive any postoperative neck irradiation.

Amplitude: The mean (± SD) amplitude of MAP expressed in mV at baseline, 1 month and 6 moths postoperative were 8.06 (± 0.35), 5.02 (± 0.51) and 4.67 (± 0.48) respectively. The amplitude of individual subjects (Figs. 4, 5) decreased at one month and 6 months progressively (ANNOVA, p < 0.001) except in 6 patients, who showed an increase in amplitude at 6 months, but this never reached the pre-operative value. Again, 5 of these did not receive any neck irradiation. Though there was a decrease in mean amplitude at one month (2.2 ± 0.8 mV) compared to pre-operative value (8.12 ± 0.41 mV, p < 0.01), this increased at 6 months (6.15 ± 1.43 mV). In comparison to the value at one month, this increase in amplitude was statistically significant (p < 0.001) The values for latency and amplitude at different periods for postoperative neck irradiation and surgery alone group are summarised in Table II.

Arm abduction test and NDQL questionnaire: On goniometric analysis, the mean (± SD) preoperative and postoperative scores were 4.9 (± 0.04) and 3.23 (± 0.53), respectively, indicating a decrease in arm abduction postoperatively (chi square test, p < 0.001). The mean pre-and post-operative scores for the questionnaire were 7.05 ± 0.03 and 11.05 ± 0.33, respectively, indicating there was a marginal decrease in the quality of life postoperatively that was statistically significant (chi square test, p < 0.001).

Venous study

The results of venous study (diameter and velocity) are summarised in the Table III. The results were compared by paired t test and the differences were statistically significant. Two patients showed partial occlusion of the vein by thrombus at 1 month postoperatively.

Discussion

The modified radical neck dissection in association with resection of the primary tumour has been the standard of care for clinically node positive operable OSCC owing to the complications resulting from sacrifice of SAN and IJV as well as the comparable outcomes as with the classical radical neck dissection. However, MND may also be associated with disability secondary to the surgical technique itself, or proximity of the lymphatics to neurovascular structures. The reported nerve dysfunction rates following MND ranges from 28% to 45% ^{8 10 11}. The possible reasons can be surgical technique of excessive handling with traction injury, microtrauma due to electrodiathermy, devascularisation and adjuvant treatments such as cisplatin based chemotherapy and radiotherapy ¹². Also, the forced immobilisation of the nerve resulting in shoulder stiffness may contribute to shoulder dysfunction postoperatively, which can be managed by aggressive physiotherapy. Some refinements in surgical techniques such as early identification of the nerve, preservation of the level IIb nodes, especially in cN0 neck, minimising the manipulation of the SAN and IJV and avoidance of electrodiathermy near neurovascular structures may minimise disability.

In the present study, there was a statistically significant increase in mean latency of MAP and decrease in the mean amplitude of the MAP following surgery, suggesting nerve dysfunction. These results are in line with earlier studies ^{8 13-15}. Though the impact of adjuvant radiation was not assessed separately, even in 5 of the patients who did not receive any postoperative neck irradiation, the values at 6 months were less than preoperative values. Furthermore, the mean amplitude at one month in the adjuvant RT group (5.6 ± 1.03 mV) was more than the mean amplitude in the surgery alone group (2.2 ± 0.8 mV, Table II), which was statistically significant. One interesing finding with respect to mean latency and amplitude in the no radiation group was that the 6 month postoperative values improved from those at 1 month suggesting progressive nerve recovery following surgery. This calls into question whether adjuvant neck irradiation interferes with postoperative neurological recovery, which can only be answered by larger or preferably randomised studies.

With respect to arm abduction, which indirectly assess SAN function, the mean score of 3.23 corresponded to an angle between 150° to 180° and there was a significant reduction in arm abduction both pre-and postoperatively. Though there was a statistically significant reduction in quality of life following treatment as assessed with the questionnaire, this did not translate into any meaningful clinical effect. The reason for this discrepancy can be explained by the high neurological reserve and the decreased action of the trapezius muscle being compensated by other arm abductors like supraspinatus, teres major and deltoid. Furthermore, all patients, as per protocol, received post-operative shoulder and neck physiotherapy which also could have contributed favourably to the quality of life scoring.

The patency of the IJV following preservation ranges from 74% to 100% and the prevalence of thrombus ranges from 5% to 26 % ^16-18. The possible reasons could be surgical technique of neck dissection with ligation of small branches and the external compression by the myocutaneous flaps used for reconstruction ^{8 19}. In the present study, only 5% of the veins developed partial thrombus (p > 0.4). The studies by Xing et al. ²⁰ and Maria et al. ¹² showed similar results, whereas the study by De Bree et al. ¹⁸ showed a significant change in patency caused by surgery. Following surgery, there was a significant decrease in the diameter of the vein as well as an increase in the velocity of blood flow, which could be due to luminal narrowing because of extrinsic compression by the myocutaneous flap used in these patients for oral reconstruction.

Conclusions

In conclusion, the present study highlights nerve and vein dysfunction following MND type II in patients undergoing surgery for OSCC. Although nerve dysfunction compromised shoulder abduction, vein dysfunction rarely resulted in any clinical impact.

Figures and tables

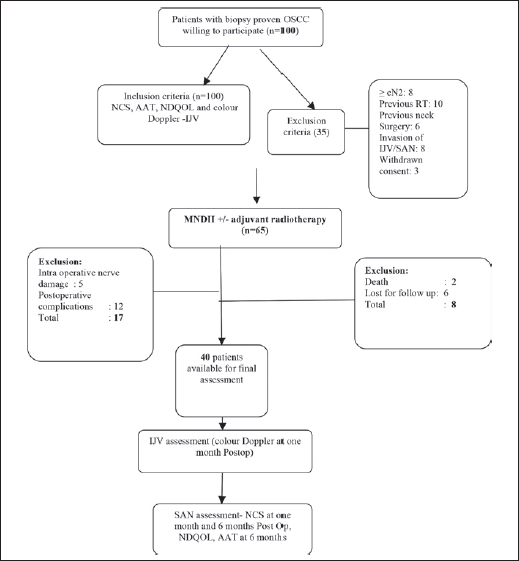

Fig. 1.Consort diagram.OSCC: oral squamous cell carcinoma; NCS: nerve conduction study; AAT: arm abduction test; NDQOL: neck dissection quality of life questionnaire; IJV: Internal jugular vein; RT: radiotherapy.

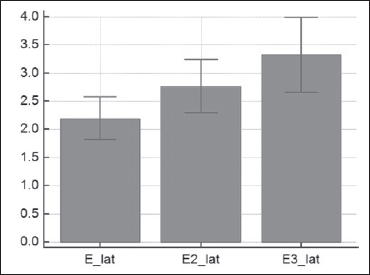

Fig. 2.The mean latency of SAN at different time intervals of the study (msec± SD).E_lat: pre-operative value; E2_lat: 1 month post-operative; E3_lat: 6 months postoperative.

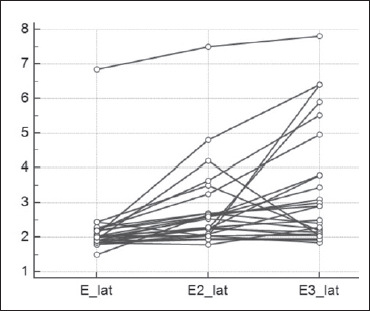

Fig. 3.Latency of SAN (msec) of individual subjects (n=40) at different time intervals.E_at: pre-operative value; E2_lat: 1 month post-operative; E3_lat: 6 months post-operative.

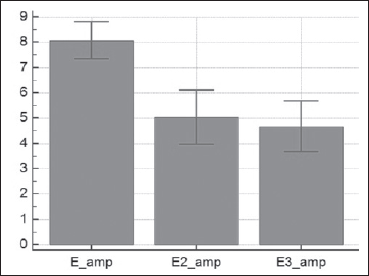

Fig. 4.The mean amplitude (mV ± SD) at different time intervals.E_amp: pre-operative value; E_2 amp: one month post-operative; E_3 amp: 6 months post-operative.

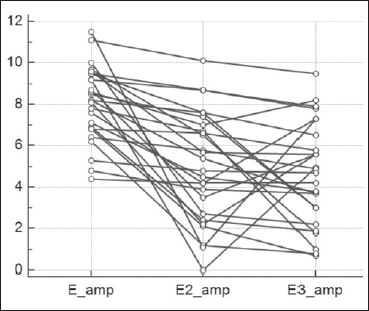

Fig. 5.The amplitude (mV) of study population (n = 40) at different time intervals.E_amp: pre-operative value; E_2 amp: one month post-operative; E_3 amp: 6 months post-operative.
