Current trends on subtotal petrosectomy with cochlear implantation in recalcitrant chronic middle ear disorders| ACTA Otorhinolaryngologica Italica

Abstract

Objective. To establish the safety and effectiveness of subtotal petrosectomy with cochlear implantation in patients affected by chronic middle ear disorders to refractory to previous surgical treatments.
Methods. A multicentre, retrospective study was conducted on patients affected by recalcitrant chronic middle ear disorders who underwent cochlear implantation in combination with subtotal petrosectomy. Patients’ details were collected from databases of 11 Italian tertiary referral centres. Additionally, a review of the most updated literature was carried out.
Results. 55 patients were included with a mean follow-up time of 44 months. Cholesteatoma was the most common middle ear recurrent pathology and 50.9% of patients had an open cavity. 80% of patients underwent a single stage surgery. One case of explantation for device failure was reported among the 7 patients with post-operative complications.
Conclusions. Subtotal petrosectomy with cochlear implantation is a benchmark for management of patients with recalcitrant chronic middle ear disorders. A single stage procedure is the most recommended strategy. Optimal follow-up is still debated. Further studies are required to investigate the role of this surgery in paediatric patients.

Introduction

In the era of “minimally-invasive surgery”, the increasing popularity of subtotal petrosectomy (SP) in patients addressed to cochlear implantation may appear anachronistic and outdated. Since its first description about 40 years ago ^1,2, SP has been historically proposed for challenging cases as an “end-stage procedure”. SP provides a safe field thanks to the closure of the external auditory canal (EAC) and eustachian tube, after meticulous removal of temporal bone air cells and mastoid cavity obliteration ¹. Why is the recent literature increasingly focusing on this surgical technique? The answer relies on the opportunity to eradicate middle ear disorders recalcitrant to previous therapeutic attempts and to simultaneously restore the impaired hearing. Nowadays, patients previously considered unfit for cochlear implantation and patients addressed to high-risk surgical procedures may receive a well-established approach, namely SP, with a lower percentage of adverse events ³. The aim of the present work was to analyse the role of SP with cochlear implantation in chronic middle ear disorders recalcitrant to previous treatments in a multicentre retrospective case series. Results were compared with literature findings of the last 12 years.

Materials and methods

A national multicentre, retrospective study was conducted on patients affected by chronic middle ear disorders who underwent SP and cochlear implantation after performing one or more previous middle ear surgeries. SP was defined according to description of Fisch et al. in 1988 ¹. Patient data were collected from the Cochlear implant (COI) databases of 11 tertiary referral centres between January 2005 and November 2022. Personal data, pathological, audiological, surgical history and indications were collected. Further details about surgery, complications and follow-up examinations were included. Complications were classified according to the consensus proposed by Hansen et al. ⁴ All patients underwent otological examination and pure-tone pre-operative audiological assessment was available in all cases. Pure tone average (PTA, average of 0.5-1-2-4 kHz), minimum, maximum values and standard deviation (SD) were calculated. Functional gain PTA (calculated as the difference between the post-operative PTA and the pre-operative PTA) was also assessed. Pre-operative study included high-resolution computed tomography (HRCT) and gadolinium-enhanced magnetic resonance imaging (MRI). Post-operative audiological data were collected at 1, 3, 6 and 12 months after surgery. Post-operative HRCT was performed if needed.

Review of literature

A narrative review of the literature was conducted using PubMed. Our aim was to identify publications in which patients, affected by chronic middle ear disorders and a previous history of middle ear surgery, were submitted to COI in combination with SP because of disease recurrence. “Subtotal petrosectomy”, “middle ear obliteration” and “cochlear implant” were used as key words. Only English articles were included, while case reports, case series, non-English articles and studies published before 2010 were excluded. Papers published by Free et al. ⁵, Polo et al. ⁶, and Vashishth et al. ⁷, met our inclusion criteria, and were not included due to a possible overlap of patients with the latest study published by Grinblat et al. ³. Data were retrieved from information available from the text and tables presented in each article. All included patients submitted to COI and SP had history of a previous middle ear surgical procedure. Cases in which the middle ear was explicitly referred as dry or non-discharging were excluded. Patients for whom information about the pathological course was not available were included. Thus, we intended to exclude patients in which the indication for COI and SP was purely audiological and was not supported by a history of recalcitrant chronic middle ear disorder.

Results

A total of 55 ears in 55 patients were included. Twenty-five were males (45.5%) and 30 were females (54.5%); the mean age at surgery was 61.6 years (range, 10-82 years). Only one paediatric patient was included in the study. Mean follow-up time was 44 months (range, 1-132 months).

Pathological and surgical history

All patients included in our series were affected by a chronic middle ear disease, had been submitted to a previous middle ear surgery, and experienced disease recurrence. Under the terms “chronic middle ear disorders” we included: chronic simple otitis media (COM), chronic suppurative otitis media (CSOM) and chronic otitis media with cholesteatoma (CCOM). In our series, CCOM was the most common middle ear recurrent pathology accounting for 28 cases (50.9%), whereas 10 patients were affected by COM (18.2%) and 17 suffered from CSOM (30.9%). Twenty-seven patients (49.1%) had a history of a previous canal wall up tympanoplasty (TPL CWU); in 28 cases an open cavity was present, including 25 (45.4%) canal wall down tympanoplasties (TPL CWD) and 3 (5.4%) radical cavities. Information about contralateral ear surgical status was also available. In 20 patients (36.4%) there was a history of previous middle ear surgery (TPL CWU, TPL CWD or radical cavity), 2 cases (3.6%) had a contralateral COI, and the remaining 33 patients (60%) did not undergo any surgical intervention on the contralateral ear (Tab. I). The presence of a concomitant nasal pathology was investigated; five of the 55 patients (9.1%) suffered from chronic rhinosinusitis with or without nasal polyposis.

Pre-operative and post-operative audiological assessment

All patients included were affected by severe to profound sensorineural hearing loss. Pre-operative mean PTA at pure-tone audiometry was 114 dB HL (range, 85-120 dB HL; SD ± 9.3). Fifteen patients (27.3%) were conventional hearing aid users whereas 40 patients (72.7%) did not use or did not benefit from the use of a hearing aid.

Contralateral ear audiological status assessment highlighted a mean PTA for air conducted sounds of 82.3 dB HL (range 35-120 dB HL; SD ± 25.13). Mean PTA for bone conducted sounds was not calculated for the presence of a large variety of hearing disorders. Post-operative results showed a mean PTA at 6 months after COI surgery of 39.9 dB HL (range 18.75-70 dB HL, SD ± 9.7). Mean PTA functional gain after COI positioning was 74.1 dB HL (Figs. 1, 2).

Surgery

Forty-four patients (80%) underwent SP in combination with COI positioning (single-stage procedure), while 11 patients (20%) underwent two consecutive surgical procedures: SP followed by COI placement (staged procedure). None of the patients underwent a total petrosectomy. Inflammatory status at time of surgery was also investigated: active middle ear inflammation was present in 15 cases (27.3%), and no inflammation was detected among the remaining 40 patients (72.7%). Only one patient who underwent a staged procedure showed active middle ear inflammation at time of surgery (Tab. II). Surgical cavity was obliterated in 49 patients; autologous abdominal fat was used in 46 cavities (83.7%), temporalis muscle in 1 case (1.8%) and hydroxyapatite granules in 2 patients (3.6%). No obliteration material was used in 6 cases (10.9%). Mean surgical time was assessed for both single-stage and staged procedures. On average, single-stage surgeries required 196 minutes, while staged procedures required 221 minutes overall. The mean time for SP stage (first stage) was 127 minutes, while for COI positioning (second stage) it was 94 minutes. The time gap between the surgical stages was 7.8 months overall. Further details about COI model and electrode insertion are listed in Table II.

Complications

Seven of 55 patients (12.7%) experienced surgical complications. Among major complications, there was one case of abdominal haematoma needing revision surgery and one case of COI failure that occurred 40 months after surgery, requiring explantation and reimplantation. Minor complications included 2 cases of EAC closure breakdown treated by scarring of the margins of the wound. One case of retroauricular wound infection was treated with antibiotic therapy, while another patient required surgical suture and wound dressings for retroauricular suture dehiscence. Finally, 1 case of abdominal seroma was reported, but did not require any specific therapy. Other than the patient who experienced COI failure, the above-mentioned complications occurred 8.1 days after surgery on average (range, 1-22 days) (Tab. III). Among the 7 patients who experienced complications, 3 had an active inflammation at time of surgery (42.9%) and none had received a staged procedure.

Radiological follow-up

A post-operative HRCT was performed in 49.1% of cases (27 patients). Among these, the first HRCT scan was made 12 months after COI surgery in 7 cases (25.9%). Mean radiological follow-up time was 24 months after surgery. From the available medical records, only 4 of 27 patients (14.8%) underwent more than one radiological imaging during follow-up (Tab. III).

Literature review

Tables I, II and III provide a detailed overview of the studies meeting our inclusion criteria ^3,8-18. Twelve articles were identified, including 103 patients for a total of 103 ears. Regarding surgical indications, information about the chronic middle ear disorder was available in 24 of 103 cases (23.3%) (Tab. I). Of those 24, 7 patients were affected by COM (29.2%), 6 by CSOM (25%) and 11 by CCOM (45.8%), making CCOM the most observed disease. Information was not available in 76.7% of cases. Previous surgical details were reported in 86 cases (83.5%). Specifically, among these, 49 underwent a previous TPL CWD (57%), 17 received TPL CWU (19.8%) and 20 patients had a previous radical cavity (23.2%). For the remaining 16.5% of patients, surgical history was not recorded. Surgical details about contralateral ear were reported in 2 papers accounting for only 6 cases (6.9%) among the 86 with an available surgical information. Regarding cochlear implantation, all patients enrolled in the study received a SP (Tab. II). For 80 cases (77.7%), a single stage surgery was performed, whereas for 9.7% (10 cases) the surgical intervention was staged. Finally, for 13 cases (12.6%) data about surgical staging were not available. Obliteration material of the cavity was also assessed, when described. Abdominal fat was the most common obliteration material used (75 cases of 103; 72.8%), while in 3 patients the temporalis muscle was preferred. In 25 cases, details about the obliteration material were not available. A total of 9 complications were identified among the included patients (8.7%), and all were classified as major according to the proposed criteria of Hansen et al. ⁴ (Tab. III).

Discussion

Constant improvements in the field of cochlear implantation have been made over the years. Profoundly deaf patients require an effective hearing rehabilitation and when deafness is concomitant with chronic refractory middle ear pathologies, hearing rehabilitation must be combined with the successful eradication of the disease. While some bone conduction hearing implants can be positioned away from an open cavity or a chronically discharging middle ear ¹⁹, cochlear implantation in these scenarios seems hazardous. SP overcomes these limits, resulting in a “safe and dry” cavity that is optimal for COI positioning ⁵. The efficacy and the advantages of this surgical technique are increasingly acknowledged. However, surgical management in terms of staging and follow-up still remains controversial ²⁰. Middle ear surgery failures are undeniably affected by the clinical behaviour of chronic middle ear pathologies over time. This tight clinical-surgical relationship led us to collect one of the largest series of patients submitted to SP in combination with cochlear implantation. In fact, data from the literature show that personal history of otitis media accounts for 55.4% of indications for SP and the presence of a mastoid cavity accounts for 35.5%. This makes these two entities the first and second most common indications for SP, as previously observed in the one of the largest studies in literature by Polo et al. ⁶. Based on this evidence, a review of the most recent literature was carried out to identify all patients affected by chronic middle ear disorders with a history of failed prior surgery. According to our literature review, CCOM is the most common indication for SP (11 of 24 cases, 45.8%), which is consistent with the results from our series (50.9% of cases). Concerning previous surgical history, surprisingly, almost half of patients in our cohort had a history of TPL CWU (49.1%), compared to only 19.8% of patients in the literature who underwent this type of surgery before SP and COI. Of note, the literature does not usually report the surgical history of patients with middle ear diseases, and thus the results obtained from our review can be underestimated. Postelmans et al. ²¹ proposed a decisional algorithm based on the presence or absence of active middle ear inflammation in order to solve one of the main controversies in surgical management. As a rule, all patients with evidence of active middle ear inflammation were staged and none experienced post-operative complications. This is consistent with our experience, in which none of the patients who underwent staged procedures experienced complications. However, the main reason prompting staged surgery was not the presence of active inflammation, but the evidence of CCOM (9 of 11 staged SP were affected by CCOM). In fact, 11 of 14 patients with signs of active inflammation underwent a single stage procedure without experiencing adverse events. Conversely, it is worth noticing that the other 3 cases with active inflammation at time of surgery were among the 7 with post-operative complications. The absence of complications among the staged patients is an indicator of the safety of staged surgeries. In our opinion, there is no interdependence between the presence of active inflammation and post-operative complications development. This hypothesis was confirmed by Grinblat et al. in in whose experience complications occurred predominantly in patients with inactive inflammatory status ³. The timing of staging in our series was 7.8 months on average. This was consistent with literature in which second stage surgery was usually performed at 6 months ^7,9,12. Six months is the estimated time interval for small residual pearls of cholesteatoma to manifest, which might have gone undetected during surgery ¹². Autologous abdominal fat was, by far, the most preferred among obliteration materials for the surgical cavity. It was chosen in 72.8% of cases in our review and in 83.7% of patients in our series. The main reasons are the low metabolic rate and easy accessibility for grafting, as well as the creation of a radiological visual interface that enables better recognition of indirect signs of cholesteatoma at HRCT ^5,6,20. More specifically, MRI-induced artifacts produced by a COI do not allow to check for cholesteatoma recurrences: even if tailored COI positioning makes it feasible to monitor specific intracranial structures, its role in cholesteatoma detection is still debated ^22,23. The use of HRCT on a cavity obliterated with abdominal fat partially overcomes this limit even though the timing of radiological follow-up is controversial. Gruppo Otologico ^5-7 has proposed a HRCT follow up at 1, 3, 5 and 10 years, while Vincenti et al. ⁹ advocate the execution of a HRCT from 12 to 18 months after surgery for reference and a second scan only in the presence of alarming symptoms. In our retrospective series, 49.1% of patients had a post-operative HRCT at a mean time of 24 months after surgery and no recurrences of cholesteatoma were observed during follow-up (44 months on average).

As reported in the literature, SP provides better results in terms of surgical risks and complications than other alternative surgical approaches. In particular, the risk of array extrusion is lower in SP than in revision mastoidectomy approaches and the technique is more feasible compared to approaches that bypass the middle ear like the middle cranial fossa one ^12,21,24. In our multicentric case series, only 12.7% of patients experienced complications, which is undeniably lower compared to patients who underwent CWD tympanoplasty with cochlear implantation (30% according to Hunter et al.) ²⁴. An additional, non-negligible benefit given by SP is quality of life improvement in terms of clinical follow-up and daily living (swimming, vertigo induced by pressure or temperature changes) ²⁴.

The multicentric nature of this study may be considered a limitation in terms of heterogeneity of the series. Many studies included in our review failed to provide adequate information about previous surgical history, contralateral ear status, COI model, or concomitant nasal pathology.

Conclusions

In patients with chronic middle ear disorders recalcitrant to previous treatments, SP with cochlear implantation is a safe and effective approach for disease eradication and simultaneous hearing rehabilitation. A single stage procedure is the most recommended strategy. Staging is advocated when CCOM is present rather than in cases of active inflammation. Optimal follow-up, in terms of timing and imaging technique, is still debated. The usefulness of SP for the paediatric population and its application along with implantable hearing devices (e.g. transcutaneous bone conduction implants, active middle ear implants) should be the object of further investigation.

Conflict of interest statement

The authors declare no conflict of interest.

Funding

This research did not receive any specific grant from funding agencies in the public, commercial, or not-for-profit sectors.

Author contributions

PC, SM, SB, MBE: conception and design of the study, acquisition and interpretation of data, drafting of the article, literature revision, critical revision for important intellectual content and final approval of the version to be published.

LB, FF, FL, DM: conception and design of the study, acquisition of data and final approval of the version to be published.

AA, MBA, AC, EC, EC, DC, FD, MF, SF, LG, SG, AL, RL, MM, EP, GR, FV, DZ, EZ: acquisition of data and final approval of the version to be published.

Ethical consideration

This study was approved by the Institutional Ethics Committee of the IRCCS Policlinico San Matteo, Pavia (IRB# 0062983/22). The research was conducted ethically, with all study procedures being performed in accordance with the requirements of the World Medical Association’s Declaration of Helsinki. Written informed consent was obtained from each volunteer for study participation and data publication.

Figures and tables

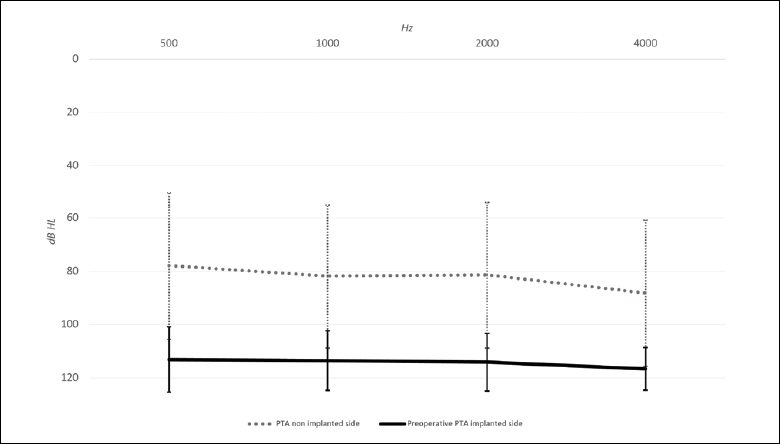

Figure 1.Pre-operative pure tone audiometry. Graphic depiction of PTA for each frequency for both implanted and non-implanted side. Horizontal lines represent PTA trending line, while vertical lines represent SD for each frequency.

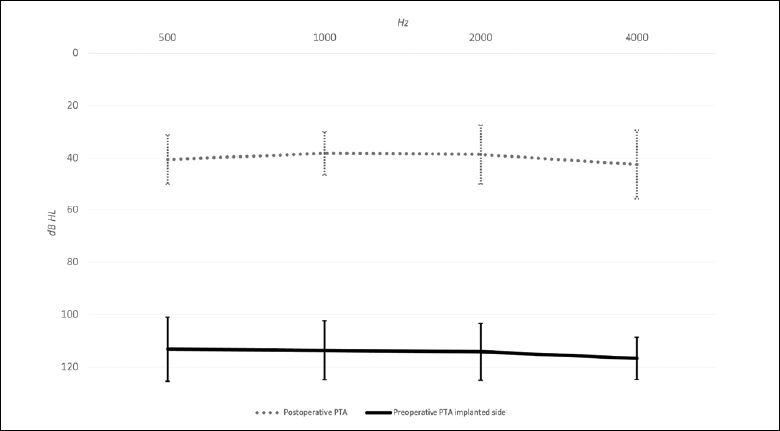

Figure 2.Pre- vs post-operative pure tone audiometry. Graphic depiction of PTA for each frequency for the implanted side, pre-operatively and 6 months after surgery. Horizontal lines represent PTA trending line, while vertical lines represent SD for each frequency.

References

1. Fisch U, Mattox DE. Microsurgery of the Skull Base. Thieme-Verlag; 1988.
2. Gacek RR. Mastoid and middle ear cavity obliteration for control of otitis media. Ann Otol Rhinol Laryngol. 1976; 85:305-309. DOI
3. Grinblat G, Vlad Di, Caruso A. Evaluation of subtotal petrosectomy technique in difficult cases of cochlear implantation. Audiol Neurotol. 2020; 25:323-335. DOI
4. Hansen S, Anthonsen K, Stangerup SE. Unexpected findings and surgical complications in 505 consecutive cochlear implantations: A proposal for reporting consensus. Acta Otolaryngol. 2010; 130:540-549. DOI
5. Free RH, Falcioni M, Di Trapani G. The role of subtotal petrosectomy in cochlear implant surgery-a report of 32 cases and review on indications. Otol Neurotol. 2013; 34:1033-1040. DOI
6. Polo R, Del Mar Medina M, Arístegui M. Subtotal petrosectomy for cochlear implantation: lessons learned after 110 cases. Ann Otol Rhinol Laryngol. 2016; 125:485-494. DOI
7. Vashishth A, Fulcheri A, Prasad SC. Cochlear implantation in cochlear ossification: retrospective review of etiologies, surgical considerations, and auditory outcomes. Otol Neurotol. 2018; 39:17-28. DOI
8. Barañano CF, Kopelovich JC, Dunn CC. Subtotal petrosectomy and mastoid obliteration in adult and pediatric cochlear implant recipients. Otol Neurotol. 2013; 34:1656-1659. DOI
9. Vincenti V, Pasanisi E, Bacciu A. Long-term results of external auditory canal closure and mastoid obliteration in cochlear implantation after radical mastoidectomy: a clinical and radiological study. Eur Arch Otorhinolaryngol. 2014; 271:2127-2130. DOI
10. Bernardeschi D, Nguyen Y, Smail M. Middle ear and mastoid obliteration for cochlear implant in adults: indications and anatomical results. Otol Neurotol. 2015; 36:604-609. DOI
11. Casserly P, Friedland PL, Atlas MD. The role of subtotal petrosectomy in cochlear implantation. J Laryngol Otol. 2016; 130:S35-S40. DOI
12. Szymański M, Ataide A, Linder T. The use of subtotal petrosectomy in cochlear implant candidates with chronic otitis media. Eur Arch Otorhinolaryngol. 2016; 273:363-370. DOI
13. Altuna X, García L, Martínez Z. The role of subtotal petrosectomy in cochlear implant recipients. Eur Arch Otorhinolaryngol. 2017; 274:4149-4153. DOI
14. D’angelo G, Donati G, Bacciu A. Subtotal petrosectomy and cochlear implantation. Acta Otorhinolaryngol Ital. 2020; 40:450-456. DOI
15. Kurkure R, Rayamajhi P, Castellino A. Subtotal petrosectomy in cochlear implant surgery: our experience. Indian J Otolaryngol Head Neck Surg. 2020; 72:320-325. DOI
16. Yoon YH, Lee J Bin, Chung JH. Cochlear implantation in patients with chronic suppurative otitis media: surgical outcomes and a management algorithm. Audiol Neurotol. 2020; 25:151-157. DOI
17. Lee S, Lee J Bin, Chung JH. Surgical outcomes of simultaneous cochlear implantation with subtotal petrosectomy. Auris Nasus Larynx. 2020; 47:943-949. DOI
18. Zhang K, Yan F, Nguyen SA. Subtotal petrosectomy with cochlear implantation or osseointegrated hearing rehabilitation: a single institutional study. Otol Neurotol. 2021; 42:1499-1506. DOI
19. Canzi P, Avato I, Beltrame M. Retrosigmoidal placement of an active transcutaneous bone conduction implant: surgical and audiological perspectives in a multicentre study. Acta Otorhinolaryngol Ital. 2021; 41:91-99. DOI
20. Yan F, Reddy PD, Isaac MJ. Subtotal petrosectomy and cochlear implantation: a systematic review and meta-analysis. JAMA Otolaryngol Head Neck Surg. 2021; 147:23-33. DOI
21. Postelmans JTF, Stokroos RJ, Linmans JJ. Cochlear implantation in patients with chronic otitis media: 7 years’ experience in Maastricht. Eur Arch Otorhinolaryngol. 2009; 266:1159-1165. DOI
22. Canzi P, Magnetto M, Simoncelli A. The role of cochlear implant positioning on MR imaging quality: a preclinical in vivo study with a novel implant magnet system. Eur Arch Otorhinolaryngol. 2022; 279:2889-2898. DOI
23. Canzi P, Luzzi S, Carlotto E. Customized cochlear implant positioning in a patient with a low-grade glioma: towards the best MRI artifact management. Otol Neurotol. 2022; 43:E628-E634. DOI
24. Hunter JB, O’Connell BP, Wanna GB. Systematic review and meta-analysis of surgical complications following cochlear implantation in canal wall down mastoid cavities. Otolaryngol Head Neck Surg. 2016; 155:555-563. DOI
